CRTP base class for quadrature. More...

#include <include/GooseFEM/Element.h>

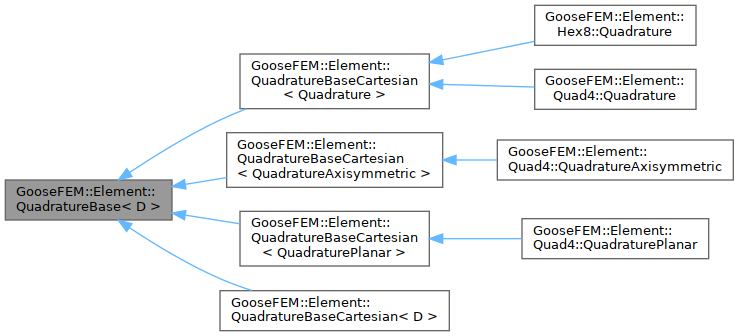

Inheritance diagram for GooseFEM::Element::QuadratureBase< D >:

[legend]

Public Types
using	derived_type = D
	Underlying type. More...

Public Member Functions
auto	nelem () const
	Number of elements. More...

auto	nne () const
	Number of nodes per element. More...

auto	ndim () const
	Number of dimensions for node vectors. More...

auto	tdim () const
	Number of dimensions for integration point tensors. More...

auto	nip () const
	Number of integration points. More...

template<class T , class R >
void	asTensor (const T &arg, R &ret) const
	Convert "qscalar" to "qtensor" of certain rank. More...

template<size_t rank, class T >
auto	AsTensor (const T &arg) const
	Convert "qscalar" to "qtensor" of certain rank. More...

template<class T >
auto	AsTensor (size_t rank, const T &arg) const
	Convert "qscalar" to "qtensor" of certain rank. More...

auto	shape_elemvec () const -> std::array< size_t, 3 >
	Get the shape of an "elemvec". More...

auto	shape_elemvec (size_t arg) const -> std::array< size_t, 3 >
	Get the shape of an "elemvec". More...

auto	shape_elemmat () const -> std::array< size_t, 3 >
	Get the shape of an "elemmat". More...

template<size_t rank = 0>
auto	shape_qtensor () const -> std::array< size_t, 2+rank >
	Get the shape of a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.). More...

auto	shape_qtensor (size_t rank) const -> std::vector< size_t >
	Get the shape of a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.). More...

template<size_t trank>
auto	shape_qtensor (size_t rank, size_t arg) const -> std::array< size_t, 2+trank >
	Get the shape of a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.). More...

auto	shape_qtensor (size_t rank, size_t arg) const -> std::vector< size_t >
	Get the shape of a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.). More...

auto	shape_qscalar () const -> std::array< size_t, 2 >
	Get the shape of a "qscalar" (a "qtensor" of rank 0) More...

auto	shape_qvector () const -> std::array< size_t, 3 >
	Get the shape of a "qvector" (a "qtensor" of rank 1) More...

auto	shape_qvector (size_t arg) const -> std::array< size_t, 3 >
	Get the shape of a "qvector" (a "qtensor" of rank 1) More...

template<class R >
auto	allocate_elemvec () const
	Get an allocated `array_type::tensor` to store a "elemvec". More...

template<class R >
auto	allocate_elemvec (R val) const
	Get an allocated and initialised `xt::xarray` to store a "elemvec". More...

template<class R >
auto	allocate_elemmat () const
	Get an allocated `array_type::tensor` to store a "elemmat". More...

template<class R >
auto	allocate_elemmat (R val) const
	Get an allocated and initialised `xt::xarray` to store a "elemmat". More...

template<size_t rank = 0, class R >
auto	allocate_qtensor () const
	Get an allocated `array_type::tensor` to store a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.). More...

template<size_t rank = 0, class R >
auto	allocate_qtensor (R val) const
	Get an allocated and initialised `array_type::tensor` to store a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.). More...

template<class R >
auto	allocate_qtensor (size_t rank) const
	Get an allocated `xt::xarray` to store a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.). More...

template<class R >
auto	allocate_qtensor (size_t rank, R val) const
	Get an allocated and initialised `xt::xarray` to store a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.). More...

template<class R >
auto	allocate_qscalar () const
	Get an allocated `array_type::tensor` to store a "qscalar" (a "qtensor" of rank 0). More...

template<class R >
auto	allocate_qscalar (R val) const
	Get an allocated and initialised `xt::xarray` to store a "qscalar" (a "qtensor" of rank 0). More...

Detailed Description

template<class D>
class GooseFEM::Element::QuadratureBase< D >

CRTP base class for quadrature.

Definition at line 149 of file Element.h.

Member Typedef Documentation

◆ derived_type

template<class D >

using GooseFEM::Element::QuadratureBase< D >::derived_type = D

Underlying type.

Definition at line 154 of file Element.h.

Member Function Documentation

◆ allocate_elemmat() [1/2]

template<class D >

template<class R >

auto GooseFEM::Element::QuadratureBase< D >::allocate_elemmat ( ) const

inline

Get an allocated array_type::tensor to store a "elemmat".

Note: the container is not (zero-)initialised.

Template Parameters

R	value-type of the array, e.g. `double`.

Returns: xt::xarray container of the correct shape.

Definition at line 411 of file Element.h.

◆ allocate_elemmat() [2/2]

template<class D >

template<class R >

auto GooseFEM::Element::QuadratureBase< D >::allocate_elemmat ( R val ) const

inline

Get an allocated and initialised xt::xarray to store a "elemmat".

Template Parameters

R	value-type of the array, e.g. `double`.

Parameters

val	The value to which to initialise all items.

Returns: array_type::tensor container of the correct shape.

Definition at line 424 of file Element.h.

◆ allocate_elemvec() [1/2]

template<class D >

template<class R >

auto GooseFEM::Element::QuadratureBase< D >::allocate_elemvec ( ) const

inline

Get an allocated array_type::tensor to store a "elemvec".

Note: the container is not (zero-)initialised.

Template Parameters

R	value-type of the array, e.g. `double`.

Returns: xt::xarray container of the correct shape.

Definition at line 383 of file Element.h.

◆ allocate_elemvec() [2/2]

template<class D >

template<class R >

auto GooseFEM::Element::QuadratureBase< D >::allocate_elemvec ( R val ) const

inline

Get an allocated and initialised xt::xarray to store a "elemvec".

Template Parameters

R	value-type of the array, e.g. `double`.

Parameters

val	The value to which to initialise all items.

Returns: array_type::tensor container of the correct shape.

Definition at line 396 of file Element.h.

◆ allocate_qscalar() [1/2]

template<class D >

template<class R >

auto GooseFEM::Element::QuadratureBase< D >::allocate_qscalar ( ) const

inline

Get an allocated array_type::tensor to store a "qscalar" (a "qtensor" of rank 0).

Note: the container is not (zero-)initialised.

Template Parameters

R	value-type of the array, e.g. `double`.

Returns: xt::xarray container of the correct shape.

Definition at line 503 of file Element.h.

◆ allocate_qscalar() [2/2]

template<class D >

template<class R >

auto GooseFEM::Element::QuadratureBase< D >::allocate_qscalar ( R val ) const

inline

Get an allocated and initialised xt::xarray to store a "qscalar" (a "qtensor" of rank 0).

Template Parameters

R	value-type of the array, e.g. `double`.

Parameters

val	The value to which to initialise all items.

Returns: array_type::tensor container of the correct shape (and rank).

Definition at line 516 of file Element.h.

◆ allocate_qtensor() [1/4]

template<class D >

template<size_t rank = 0, class R >

auto GooseFEM::Element::QuadratureBase< D >::allocate_qtensor ( ) const

inline

Get an allocated array_type::tensor to store a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.).

Default: rank = 0, a.k.a. scalar. Note: the container is not (zero-)initialised.

Template Parameters

R	value-type of the array, e.g. `double`.

Returns: [nelem, nip].

Definition at line 441 of file Element.h.

◆ allocate_qtensor() [2/4]

template<class D >

template<size_t rank = 0, class R >

auto GooseFEM::Element::QuadratureBase< D >::allocate_qtensor ( R val ) const

inline

Get an allocated and initialised array_type::tensor to store a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.).

Default: rank = 0, a.k.a. scalar.

Template Parameters

R	value-type of the array, e.g. `double`.

Parameters

val	The value to which to initialise all items.

Returns: array_type::tensor container of the correct shape (and rank).

Definition at line 456 of file Element.h.

◆ allocate_qtensor() [3/4]

template<class D >

template<class R >

auto GooseFEM::Element::QuadratureBase< D >::allocate_qtensor ( size_t rank ) const

inline

Get an allocated xt::xarray to store a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.).

Note: the container is not (zero-)initialised.

Template Parameters

R	value-type of the array, e.g. `double`.

Parameters

rank	The tensor rank.

Returns: xt::xarray container of the correct shape.

Definition at line 473 of file Element.h.

◆ allocate_qtensor() [4/4]

template<class D >

template<class R >

auto GooseFEM::Element::QuadratureBase< D >::allocate_qtensor	(	size_t	rank,
		R	val
	)		const

inline

Get an allocated and initialised xt::xarray to store a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.).

Template Parameters

R	value-type of the array, e.g. `double`.

Parameters

rank	The tensor rank.
val	The value to which to initialise all items.

Returns: array_type::tensor container of the correct shape (and rank).

Definition at line 488 of file Element.h.

◆ AsTensor() [1/2]

template<class D >

template<size_t rank, class T >

auto GooseFEM::Element::QuadratureBase< D >::AsTensor ( const T & arg ) const

inline

Convert "qscalar" to "qtensor" of certain rank.

Parameters

arg	A "qscalar".

Returns: "qtensor".

Definition at line 227 of file Element.h.

◆ asTensor()

template<class D >

template<class T , class R >

void GooseFEM::Element::QuadratureBase< D >::asTensor	(	const T &	arg,
		R &	ret
	)		const

inline

Convert "qscalar" to "qtensor" of certain rank.

Fully allocated output passed as reference, use AsTensor to allocate and return data.

Parameters

arg	A "qscalar".
ret	A "qtensor".

Definition at line 214 of file Element.h.

◆ AsTensor() [2/2]

template<class D >

template<class T >

auto GooseFEM::Element::QuadratureBase< D >::AsTensor	(	size_t	rank,
		const T &	arg
	)		const

inline

Convert "qscalar" to "qtensor" of certain rank.

Parameters

rank	Tensor rank.
arg	A "qscalar".

Returns: "qtensor".

Definition at line 240 of file Element.h.

◆ ndim()

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::ndim ( ) const

inline

Number of dimensions for node vectors.

Returns: Scalar.

Definition at line 181 of file Element.h.

◆ nelem()

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::nelem ( ) const

inline

Number of elements.

Returns: Scalar.

Definition at line 161 of file Element.h.

◆ nip()

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::nip ( ) const

inline

Number of integration points.

Returns: Scalar.

Definition at line 201 of file Element.h.

◆ nne()

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::nne ( ) const

inline

Number of nodes per element.

Returns: Scalar.

Definition at line 171 of file Element.h.

◆ shape_elemmat()

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::shape_elemmat ( ) const -> std::array<size_t, 3>

inline

Get the shape of an "elemmat".

Returns: [nelem, nne * ndim, nne * ndim].

Definition at line 271 of file Element.h.

◆ shape_elemvec() [1/2]

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::shape_elemvec ( ) const -> std::array<size_t, 3>

inline

Get the shape of an "elemvec".

Returns: [nelem, nne, ndim].

Definition at line 250 of file Element.h.

◆ shape_elemvec() [2/2]

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::shape_elemvec ( size_t arg ) const -> std::array<size_t, 3>

inline

Get the shape of an "elemvec".

Parameters

arg	The vector dimension.

Returns: [nelem, nne, tdim].

Definition at line 261 of file Element.h.

◆ shape_qscalar()

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::shape_qscalar ( ) const -> std::array<size_t, 2>

inline

Get the shape of a "qscalar" (a "qtensor" of rank 0)

Returns: [nelem, nip].

Definition at line 351 of file Element.h.

◆ shape_qtensor() [1/4]

template<class D >

template<size_t rank = 0>

auto GooseFEM::Element::QuadratureBase< D >::shape_qtensor ( ) const -> std::array<size_t, 2 + rank>

inline

Get the shape of a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.).

Template Parameters

rank	Rank of the tensor. Output is fixed-size: `std::array<size_t, rank>`.

Returns: [nelem, nip, tdim, ...].

Definition at line 285 of file Element.h.

◆ shape_qtensor() [2/4]

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::shape_qtensor ( size_t rank ) const -> std::vector<size_t>

inline

Get the shape of a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.).

Parameters

rank	The tensor rank.

Returns: [nelem, nip, tdim, ...].

Definition at line 301 of file Element.h.

◆ shape_qtensor() [3/4]

template<class D >

template<size_t trank>

auto GooseFEM::Element::QuadratureBase< D >::shape_qtensor	(	size_t	rank,
		size_t	arg
	)		const -> std::array<size_t, 2 + trank>

inline

Get the shape of a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.).

Template Parameters

rank	Rank of the tensor. Output is fixed-size: `std::array<size_t, rank>`.

Parameters

rank	The tensor rank. Effectively useless: to distinguish from the dynamic-sized.
arg	The tensor dimension.

Returns: [nelem, nip, tdim, ...].

Definition at line 320 of file Element.h.

◆ shape_qtensor() [4/4]

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::shape_qtensor	(	size_t	rank,
		size_t	arg
	)		const -> std::vector<size_t>

inline

Get the shape of a "qtensor" of a certain rank (0 = scalar, 1, vector, 2 = 2nd-order tensor, etc.).

Parameters

rank	The tensor rank.
arg	The tensor dimension.

Returns: [nelem, nip, tdim, ...].

Definition at line 338 of file Element.h.

◆ shape_qvector() [1/2]

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::shape_qvector ( ) const -> std::array<size_t, 3>

inline

Get the shape of a "qvector" (a "qtensor" of rank 1)

Returns: [nelem, nip, tdim].

Definition at line 360 of file Element.h.

◆ shape_qvector() [2/2]

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::shape_qvector ( size_t arg ) const -> std::array<size_t, 3>

inline

Get the shape of a "qvector" (a "qtensor" of rank 1)

Parameters

arg	Tensor dimension.

Returns: [nelem, nip, tdim].

Definition at line 370 of file Element.h.

◆ tdim()

template<class D >

auto GooseFEM::Element::QuadratureBase< D >::tdim ( ) const

inline

Number of dimensions for integration point tensors.

Returns: Scalar.

Definition at line 191 of file Element.h.

The documentation for this class was generated from the following file:

GooseFEM/Element.h

Public Types

Public Member Functions

Detailed Description

Member Typedef Documentation

◆ derived_type

Member Function Documentation

◆ allocate_elemmat() [1/2]

◆ allocate_elemmat() [2/2]

◆ allocate_elemvec() [1/2]

◆ allocate_elemvec() [2/2]

◆ allocate_qscalar() [1/2]

◆ allocate_qscalar() [2/2]

◆ allocate_qtensor() [1/4]

◆ allocate_qtensor() [2/4]

◆ allocate_qtensor() [3/4]

◆ allocate_qtensor() [4/4]

◆ AsTensor() [1/2]

◆ asTensor()

◆ AsTensor() [2/2]

◆ ndim()

◆ nelem()

◆ nip()

◆ nne()

◆ shape_elemmat()

◆ shape_elemvec() [1/2]

◆ shape_elemvec() [2/2]

◆ shape_qscalar()

◆ shape_qtensor() [1/4]

◆ shape_qtensor() [2/4]

◆ shape_qtensor() [3/4]

◆ shape_qtensor() [4/4]

◆ shape_qvector() [1/2]

◆ shape_qvector() [2/2]

◆ tdim()
