FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System Class Reference

System that comprises several layers (elastic or plastic). More...

#include <FrictionQPotFEM/UniformMultiLayerIndividualDrive2d.h>

Inheritance diagram for FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System:

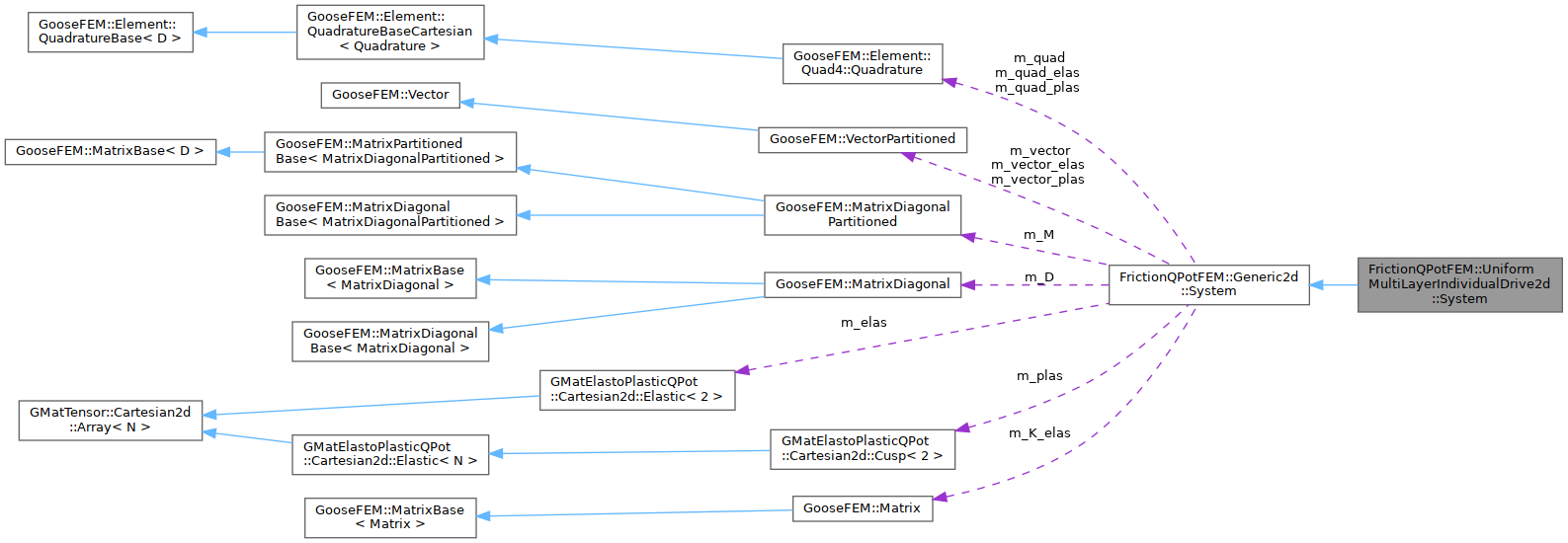

Collaboration diagram for FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System:

Public Member Functions

 System (const array_type::tensor< double, 2 > &coor, const array_type::tensor< size_t, 2 > &conn, const array_type::tensor< size_t, 2 > &dofs, const array_type::tensor< size_t, 1 > &iip, const std::vector< array_type::tensor< size_t, 1 > > &elem, const std::vector< array_type::tensor< size_t, 1 > > &node, const array_type::tensor< bool, 1 > &layer_is_plastic, const array_type::tensor< double, 2 > &elastic_K, const array_type::tensor< double, 2 > &elastic_G, const array_type::tensor< double, 2 > &plastic_K, const array_type::tensor< double, 2 > &plastic_G, const array_type::tensor< double, 3 > &plastic_epsy, double dt, double rho, double alpha, double eta, const array_type::tensor< bool, 2 > &drive_is_active, double k_drive)
 Define basic geometry. More...

size_t N () const override
 Return the linear system size (in number of blocks). More...

std::string type () const override
 Return the type of system. More...

size_t nlayer () const
 Return number of layers. More...

array_type::tensor< size_t, 1 > layerElements (size_t i) const
 Return the elements belonging to the i-th layer. More...

array_type::tensor< size_t, 1 > layerNodes (size_t i) const
 Return the nodes belonging to the i-th layer. More...

const array_type::tensor< bool, 1 > & layerIsPlastic () const
 Return if a layer is elastic (false) or plastic (true). More...

void layerSetDriveStiffness (double k, bool symmetric=true)
 Set the stiffness of the springs connecting the average displacement of a layer ("ubar") to its set target value. More...

template<class S , class T >
double initEventDriven (const S &ubar, const T &active)
 Initialise the event driven protocol by applying a perturbation to the loading springs and computing and storing the linear, purely elastic, response. More...

template<class S , class T , class U >
double initEventDriven (const S &ubar, const T &active, const U &delta_u)
 Restore perturbation used from event driven protocol. More...

const array_type::tensor< double, 2 > & eventDriven_deltaUbar () const
 Get target average position perturbation used for event driven code. More...

const array_type::tensor< bool, 2 > & eventDriven_targetActive () const
 Get if the target average position is prescribed in the event driven code. More...

double eventDrivenStep (double deps, bool kick, int direction=+1, bool yield_element=false, bool fallback=false) override
 Add event driven step for the boundary conditions that correspond to the displacement perturbation set in eventDriven_setDeltaU(). More...

template<class T >
void layerSetTargetActive (const T &active)
 Turn on (or off) springs connecting the average displacement of a layer ("ubar") to its set target value. More...

array_type::tensor< double, 2 > layerUbar ()
 List the average displacement of each layer. More...

const array_type::tensor< double, 2 > & layerTargetUbar () const
 List the target average displacement per layer. More...

const array_type::tensor< bool, 2 > & layerTargetActive () const
 List if the driving spring is activate. More...

template<class T >
void layerSetTargetUbar (const T &ubar)
 Overwrite the target average displacement per layer. More...

template<class S , class T >
void layerSetUbar (const S &ubar, const T &prescribe)
 Move the layer such that the average displacement is exactly equal to its input value. More...

template<class T >
array_type::tensor< double, 2 > layerTargetUbar_affineSimpleShear (double delta_gamma, const T &height) const
 Get target average displacements that correspond to affine simple shear (with the bottom fixed). More...

const array_type::tensor< double, 2 > & fdrive () const
 Nodal force induced by the driving springs. More...

array_type::tensor< double, 2 > layerFdrive () const
 Force of each of the driving springs. More...

- Public Member Functions inherited from FrictionQPotFEM::Generic2d::System
template<class C , class E , class L , class M , class Y >
 System (const C &coor, const E &conn, const E &dofs, const L &iip, const L &elastic_elem, const M &elastic_K, const M &elastic_G, const L &plastic_elem, const M &plastic_K, const M &plastic_G, const Y &plastic_epsy, double dt, double rho, double alpha, double eta)
 Define the geometry, including boundary conditions and element sets. More...

virtual size_t N () const
 Return the linear system size (in number of blocks). More...

virtual std::string type () const
 Return the type of system. More...

double rho () const
 Mass density. More...

void setRho (double rho)
 Overwrite the mass density to a homogeneous quantity. More...

template<class T >
void setMassMatrix (const T &val_elem)
 Overwrite mass matrix, based on certain density that is uniform per element. More...

void setEta (double eta)
 Overwrite the value of the damping at the interface. More...

double eta () const
 Get the damping at the interface. More...

void setAlpha (double alpha)
 Overwrite background damping density (proportional to the velocity), To use a non-homogeneous density use setDampingMatrix(). More...

double alpha () const
 Background damping density. More...

template<class T >
void setDampingMatrix (const T &val_elem)
 Overwrite damping matrix, based on certain density (taken uniform per element). More...

bool isHomogeneousElastic () const
 Check if elasticity is homogeneous. More...

double dt () const
 Get time step. More...

void setDt (double dt)
 Overwrite time step. More...

template<class T >
void setU (const T &u)
 Overwrite nodal displacements. More...

template<class T >
void setV (const T &v)
 Overwrite nodal velocities. More...

template<class T >
void setA (const T &a)
 Overwrite nodal accelerations. More...

virtual void updated_u ()
 Evaluate relevant forces when m_u is updated. More...

void updated_v ()
 Evaluate relevant forces when m_v is updated. More...

template<class T >
void setFext (const T &fext)
 Overwrite external force. More...

const auto & elastic_elem () const
 List of elastic elements. More...

const auto & plastic_elem () const
 List of plastic elements. More...

const auto & conn () const
 Connectivity. More...

const auto & coor () const
 Nodal coordinates. More...

const auto & dofs () const
 DOFs per node. More...

const auto & u () const
 Nodal displacements. More...

const auto & v () const
 Nodal velocities. More...

const auto & a () const
 Nodal accelerations. More...

auto & mass () const
 Mass matrix, see System::m_M. More...

auto & damping () const
 Damping matrix, see setAlpha() and setDampingMatrix(). More...

const auto & fext ()
 External force. More...

void applyShearStress (double sigxy)
 Modify the external force such that a shear stress is applied to the top boundary. More...

const auto & fint ()
 Internal force. More...

const auto & fmaterial () const
 Force deriving from elasticity. More...

const auto & fdamp () const
 Force deriving from damping. More...

double residual () const
 Norm of the relative residual force (the external force at the top/bottom boundaries is used for normalisation). More...

void quench ()
 Set nodal velocities and accelerations equal to zero. More...

double t () const
 Current time. More...

void setT (double arg)
 Overwrite time. More...

size_t inc () const
 The increment, see setInc(). More...

virtual void setInc (size_t arg)
 Set increment. More...

const auto & dV () const
 Integration point volume (of each integration point) More...

const GooseFEM::VectorPartitionedvector () const
 GooseFEM vector definition. More...

const GooseFEM::Element::Quad4::Quadraturequad () const
 GooseFEM quadrature definition. More...

GMatElastoPlasticQPot::Cartesian2d::Elastic< 2 > & elastic ()
 Elastic material mode, used for all elastic elements. More...

GMatElastoPlasticQPot::Cartesian2d::Cusp< 2 > & plastic ()
 Elastic material mode, used for all elastic elements. More...

array_type::tensor< double, 2 > K () const
 Bulk modulus per integration point. More...

array_type::tensor< double, 2 > G () const
 Shear modulus per integration point. More...

const array_type::tensor< double, 4 > & Sig ()
 Stress tensor of each integration point. More...

const array_type::tensor< double, 4 > & Eps ()
 Strain tensor of each integration point. More...

array_type::tensor< double, 4 > Epsdot () const
 Strain-rate tensor (the symmetric gradient of the nodal velocities) of each integration point. More...

array_type::tensor< double, 4 > Epsddot () const
 Symmetric gradient of the nodal accelerations of each integration point. More...

GooseFEM::MatrixPartitioned stiffness () const
 Stiffness tensor of each integration point. More...

const array_type::tensor< double, 4 > & plastic_Epsdot ()
 Strain-rate tensor of integration points of plastic elements only, see System::plastic. More...

void refresh ()
 Recompute all forces. More...

template<class T >
double eventDriven_setDeltaU (const T &delta_u, bool autoscale=true)
 Set purely elastic and linear response to specific boundary conditions. More...

const auto & eventDriven_deltaU () const
 Get displacement perturbation used for event driven code, see eventDriven_setDeltaU(). More...

virtual double eventDrivenStep (double deps, bool kick, int direction=1, bool yield_element=false, bool iterative=false)
 Add event driven step for the boundary conditions that correspond to the displacement perturbation set in eventDriven_setDeltaU(). More...

void timeStep ()
 Make a time-step: apply velocity-Verlet integration. More...

long timeSteps (size_t n, size_t nmargin=0)
 Make a number of time steps, see timeStep(). More...

size_t timeStepsUntilEvent (size_t nmargin=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
 Perform a series of time-steps until the next plastic event, or equilibrium. More...

std::tuple< array_type::tensor< double, 1 >, array_type::tensor< double, 2 >, array_type::tensor< double, 2 > > minimise_highfrequency (const array_type::tensor< size_t, 1 > &nodes, const array_type::tensor< size_t, 1 > &top, size_t t_step=1, size_t nmargin=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
 Minimise energy while doing a high-frequency measurement of: More...

template<class T >
long flowSteps (size_t n, const T &v, size_t nmargin=0)
 Make a number of steps with the following protocol. More...

long minimise (size_t nmargin=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7, bool time_activity=false, bool max_iter_is_error=true)
 Minimise energy: run System::timeStep until a mechanical equilibrium has been reached. More...

size_t quasistaticActivityFirst () const
 Increment with the first plastic event. More...

size_t quasistaticActivityLast () const
 Increment with the last plastic event. More...

template<class T >
size_t minimise_truncate (const T &idx_n, size_t A_truncate=0, size_t S_truncate=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
 Like Generic2d::minimise(), but stops when a certain number of blocks has yielded at least once. More...

size_t minimise_truncate (size_t A_truncate=0, size_t S_truncate=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
 Like Generic2d::minimise(), but stops when a certain number of blocks has yielded at least once. More...

array_type::tensor< double, 2 > affineSimpleShear (double delta_gamma) const
 Get the displacement field that corresponds to an affine simple shear of a certain strain. More...

array_type::tensor< double, 2 > affineSimpleShearCentered (double delta_gamma) const
 Get the displacement field that corresponds to an affine simple shear of a certain strain. More...


Protected Member Functions

void computeLayerUbarActive ()
 Compute the average displacement of all layers with an active driving spring. More...

void computeForceFromTargetUbar ()
 Compute force deriving from the activate springs between the average displacement of the layer and its target value. More...

void updated_u () override
 Evaluate relevant forces when m_u is updated. More...

void computeInternalExternalResidualForce () override
 Compute: More...

- Protected Member Functions inherited from FrictionQPotFEM::Generic2d::System
void computeEpsSig ()
 Compute m_Sig and m_Eps using m_u. More...

void computeForceMaterial ()
 Update m_fmaterial based on the current displacement field m_u. More...

virtual void computeInternalExternalResidualForce ()
 Compute: More...


Protected Attributes

size_t m_N
 Linear system size. More...

size_t m_n_layer
 Number of layers. More...

std::vector< array_type::tensor< size_t, 1 > > m_layer_node
 Nodes per layer. More...

std::vector< array_type::tensor< size_t, 1 > > m_layer_elem
 Elements per layer. More...

array_type::tensor< bool, 1 > m_layer_is_plastic
 Per layer true if the layer is plastic. More...

array_type::tensor< size_t, 1 > m_slice_index
 Per layer the index in m_slice_plas or m_slice_elas. More...

array_type::tensor< size_t, 1 > m_slice_plas
 How to slice elastic_elem(): start & end index. More...

array_type::tensor< size_t, 1 > m_slice_elas
 How to slice plastic_elem(): start & end index. More...

bool m_drive_spring_symmetric
 If false the drive spring buckles in compression. More...

double m_drive_k
 Stiffness of the drive control frame. More...

array_type::tensor< bool, 2 > m_layerdrive_active
 See prescribe in layerSetTargetUbar() More...

array_type::tensor< double, 2 > m_layerdrive_targetubar
 Per layer, the prescribed average position. More...

array_type::tensor< double, 2 > m_layer_ubar
 See computeLayerUbarActive(). More...

array_type::tensor< double, 2 > m_fdrive
 Force related to driving frame. More...

array_type::tensor< double, 2 > m_layer_dV1
 volume per layer (as vector, same for all dimensions) More...

array_type::tensor< double, 2 > m_dV
 copy of m_quad.dV() More...

array_type::tensor< double, 3 > m_uq
 qvector More...

array_type::tensor< double, 1 > m_ud
 dofval More...

array_type::tensor< bool, 2 > m_pert_layerdrive_active
 Event driven: applied lever setting. More...

array_type::tensor< double, 2 > m_pert_layerdrive_targetubar
 Event driven: applied lever setting. More...

- Protected Attributes inherited from FrictionQPotFEM::Generic2d::System
array_type::tensor< double, 2 > m_coor
 Nodal coordinates, see coor(). More...

size_t m_N
 Number of plastic elements, alias of m_nelem_plas. More...

size_t m_nelem
 Number of elements. More...

size_t m_nelem_elas
 Number of elastic elements. More...

size_t m_nelem_plas
 Number of plastic elements. More...

size_t m_nne
 Number of nodes per element. More...

size_t m_nnode
 Number of nodes. More...

size_t m_ndim
 Number of spatial dimensions. More...

size_t m_nip
 Number of integration points. More...

array_type::tensor< size_t, 1 > m_elem_elas
 Elastic elements. More...

array_type::tensor< size_t, 1 > m_elem_plas
 Plastic elements. More...

GooseFEM::Element::Quad4::Quadrature m_quad
 Quadrature for all elements. More...

GooseFEM::Element::Quad4::Quadrature m_quad_elas
 m_quad for elastic elements only. More...

GooseFEM::Element::Quad4::Quadrature m_quad_plas
 m_quad for plastic elements only. More...

GooseFEM::VectorPartitioned m_vector
 Convert vectors between 'nodevec', 'elemvec', .... More...

GooseFEM::VectorPartitioned m_vector_elas
 m_vector for elastic elements only. More...

GooseFEM::VectorPartitioned m_vector_plas
 m_vector for plastic elements only. More...

GooseFEM::MatrixDiagonalPartitioned m_M
 Mass matrix (diagonal). More...

GooseFEM::MatrixDiagonal m_D
 Damping matrix (diagonal). More...

GMatElastoPlasticQPot::Cartesian2d::Elastic< 2 > m_elas
 Material for elastic el. More...

GMatElastoPlasticQPot::Cartesian2d::Cusp< 2 > m_plas
 Material for plastic el. More...

array_type::tensor< double, 2 > m_u
 Nodal displacements. More...

array_type::tensor< double, 2 > m_v
 Nodal velocities. More...

array_type::tensor< double, 2 > m_a
 Nodal accelerations. More...

array_type::tensor< double, 2 > m_v_n
 Nodal velocities last time-step. More...

array_type::tensor< double, 2 > m_a_n
 Nodal accelerations last time-step. More...

array_type::tensor< double, 3 > m_ue
 Element vector (used for displacements). More...

array_type::tensor< double, 3 > m_fe
 Element vector (used for forces). More...

array_type::tensor< double, 3 > m_ue_elas
 m_ue for elastic element only More...

array_type::tensor< double, 3 > m_fe_elas
 m_fe for elastic element only More...

array_type::tensor< double, 3 > m_ue_plas
 m_ue for plastic element only More...

array_type::tensor< double, 3 > m_fe_plas
 m_fe for plastic element only More...

array_type::tensor< double, 2 > m_fmaterial
 Nodal force, deriving from elasticity. More...

array_type::tensor< double, 2 > m_felas
 Nodal force from elasticity of elastic elements. More...

array_type::tensor< double, 2 > m_fplas
 Nodal force from elasticity of plastic elements. More...

array_type::tensor< double, 2 > m_fdamp
 Nodal force from damping. More...

array_type::tensor< double, 2 > m_fvisco
 Nodal force from damping at the interface. More...

array_type::tensor< double, 2 > m_ftmp
 Temporary for internal use. More...

array_type::tensor< double, 2 > m_fint
 Nodal force: total internal force. More...

array_type::tensor< double, 2 > m_fext
 Nodal force: total external force (reaction force) More...

array_type::tensor< double, 2 > m_fres
 Nodal force: residual force. More...

array_type::tensor< double, 4 > m_Eps
 Quad-point tensor: strain. More...

array_type::tensor< double, 4 > m_Sig
 Quad-point tensor: stress. More...

array_type::tensor< double, 4 > m_Epsdot_plas
 Quad-point tensor: strain-rate for plastic el. More...

GooseFEM::Matrix m_K_elas
 Stiffness matrix for elastic elements only. More...

size_t m_qs_inc_first = 0
 First increment with plastic activity during minimisation. More...

size_t m_qs_inc_last = 0
 Last increment with plastic activity during minimisation. More...

size_t m_inc
 Current increment (current time = m_dt * m_inc). More...

double m_dt
 Time-step. More...

double m_eta
 Damping at the interface. More...

double m_rho
 Mass density (non-zero only if homogeneous). More...

double m_alpha
 Background damping density (non-zero only if homogeneous). More...

bool m_set_D
 Use m_D only if it is non-zero. More...

bool m_set_visco
 Use m_eta only if it is non-zero. More...

bool m_full_outdated
 Keep track of the need to recompute fields on full geometry. More...

array_type::tensor< double, 2 > m_pert_u
 See eventDriven_setDeltaU() More...

array_type::tensor< double, 4 > m_pert_Epsd_plastic
 Strain deviator for m_pert_u. More...


Detailed Description

System that comprises several layers (elastic or plastic).

The average displacement of each layer can be coupled to a prescribed target value using a linear spring (one spring per spatial dimension):

Terminology:

Definition at line 57 of file UniformMultiLayerIndividualDrive2d.h.

Constructor & Destructor Documentation

◆ ~System()

virtual FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::~System ( )
inlinevirtual

Reimplemented from FrictionQPotFEM::Generic2d::System.

Definition at line 62 of file UniformMultiLayerIndividualDrive2d.h.

◆ System()

FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::System ( const array_type::tensor< double, 2 > &  coor,
const array_type::tensor< size_t, 2 > &  conn,
const array_type::tensor< size_t, 2 > &  dofs,
const array_type::tensor< size_t, 1 > &  iip,
const std::vector< array_type::tensor< size_t, 1 > > &  elem,
const std::vector< array_type::tensor< size_t, 1 > > &  node,
const array_type::tensor< bool, 1 > &  layer_is_plastic,
const array_type::tensor< double, 2 > &  elastic_K,
const array_type::tensor< double, 2 > &  elastic_G,
const array_type::tensor< double, 2 > &  plastic_K,
const array_type::tensor< double, 2 > &  plastic_G,
const array_type::tensor< double, 3 > &  plastic_epsy,
double  dt,
double  rho,
double  alpha,
double  eta,
const array_type::tensor< bool, 2 > &  drive_is_active,
double  k_drive
)
inline

Define basic geometry.

Parameters
coorNodal coordinates.
connConnectivity.
dofsDOFs per node.
iipDOFs whose displacement is fixed.
elemElements per layer.
nodeNodes per layer.
layer_is_plasticPer layer set if elastic (= 0) or plastic (= 1).
elastic_KBulk modulus per quad. point of each elastic element, see setElastic().
elastic_GShear modulus per quad. point of each elastic element, see setElastic().
plastic_KBulk modulus per quad. point of each plastic element, see Plastic().
plastic_GShear modulus per quad. point of each plastic element, see Plastic().
plastic_epsyYield strain per quad. point of each plastic element, see Plastic().
dtTime step, set setDt().
rhoMass density, see setMassMatrix().
alphaBackground damping density, see setDampingMatrix().
etaDamping at the interface (homogeneous), see setEta().
drive_is_activePer layer (de)activate drive for each DOF, see layerSetTargetActive().
k_driveStiffness of driving spring, see layerSetDriveStiffness().

Definition at line 86 of file UniformMultiLayerIndividualDrive2d.h.

Member Function Documentation

◆ computeForceFromTargetUbar()

void FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::computeForceFromTargetUbar ( )
inlineprotected

Compute force deriving from the activate springs between the average displacement of the layer and its target value.

The force is applied as a force density.

Internal rule: computeLayerUbarActive() is called before this function, if the displacement changed since the last time the average was computed.

Definition at line 721 of file UniformMultiLayerIndividualDrive2d.h.

◆ computeInternalExternalResidualForce()

void FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::computeInternalExternalResidualForce ( )
inlineoverrideprotectedvirtual

Compute:

  • m_fint = m_fdrive + m_fmaterial + m_fdamp
  • m_fext[iip] = m_fint[iip]
  • m_fres = m_fext - m_fint

Internal rule: all relevant forces are expected to be updated before this function is called.

Reimplemented from FrictionQPotFEM::Generic2d::System.

Definition at line 765 of file UniformMultiLayerIndividualDrive2d.h.

◆ computeLayerUbarActive()

void FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::computeLayerUbarActive ( )
inlineprotected

Compute the average displacement of all layers with an active driving spring.

Definition at line 690 of file UniformMultiLayerIndividualDrive2d.h.

◆ eventDriven_deltaUbar()

const array_type::tensor< double, 2 > & FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::eventDriven_deltaUbar ( ) const
inline

Get target average position perturbation used for event driven code.

Returns
[nlayer, 2]

Definition at line 475 of file UniformMultiLayerIndividualDrive2d.h.

◆ eventDriven_targetActive()

const array_type::tensor< bool, 2 > & FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::eventDriven_targetActive ( ) const
inline

Get if the target average position is prescribed in the event driven code.

Returns
[nlayer, 2]

Definition at line 484 of file UniformMultiLayerIndividualDrive2d.h.

◆ eventDrivenStep()

double FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::eventDrivenStep ( double  deps,
bool  kick,
int  direction = +1,
bool  yield_element = false,
bool  iterative = false
)
inlineoverridevirtual

Add event driven step for the boundary conditions that correspond to the displacement perturbation set in eventDriven_setDeltaU().

Todo:
The current implementation is suited for unloading, but only until the first yield strain. An improved implementation is needed to deal with the symmetry of the equivalent strain. A FRICTIONQPOTFEM_WIP assertion is made.
Parameters
depsSize of the local stain kick to apply.
kickIf false, increment displacements to deps / 2 of yielding again. If true, increment displacements by a affine simple shear increment deps.
directionIf +1: apply shear to the right. If -1 applying shear to the left.
yield_elementIf true and kick == true then the element closest to yielding is selected (as normal), but of that element the displacement update is the maximum of the element, such that all integration points of the element are forced to yield.
iterativeIf true the step is iteratively searched. This is more costly by recommended, if the perturbation is non-analytical (and contains numerical errors).
Returns
Factor with which the displacement perturbation, see eventDriven_deltaU(), is scaled.

Reimplemented from FrictionQPotFEM::Generic2d::System.

Reimplemented in FrictionQPotFEM::UniformMultiLayerLeverDrive2d::System.

Definition at line 489 of file UniformMultiLayerIndividualDrive2d.h.

◆ fdrive()

const array_type::tensor< double, 2 > & FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::fdrive ( ) const
inline

Nodal force induced by the driving springs.

The only non-zero contribution comes from:

  • springs that are active, see layerSetTargetActive(), and
  • layers whose average displacement is different from its target value.
Returns
nodevec [nnode, ndim].

Definition at line 658 of file UniformMultiLayerIndividualDrive2d.h.

◆ initEventDriven() [1/2]

template<class S , class T >
double FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::initEventDriven ( const S &  ubar,
const T &  active
)
inline

Initialise the event driven protocol by applying a perturbation to the loading springs and computing and storing the linear, purely elastic, response.

The system can thereafter be moved forward to the next event. Note that this function itself does not change the system in any way, it just stores the relevant perturbations.

Template Parameters
Sarray_type::tensor<double, 2>
Parameters
ubarThe perturbation in the target average position of each layer [nlayer, 2].
Template Parameters
Tarray_type::tensor<bool, 2>
Parameters
activeFor each layer and each degree-of-freedom specify if the spring is active (true) or not (false) [nlayer, 2].
Returns
Value with which the input perturbation is scaled, see also eventDriven_deltaUbar().

Definition at line 388 of file UniformMultiLayerIndividualDrive2d.h.

◆ initEventDriven() [2/2]

template<class S , class T , class U >
double FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::initEventDriven ( const S &  ubar,
const T &  active,
const U &  delta_u
)
inline

Restore perturbation used from event driven protocol.

Parameters
ubarSee eventDriven_deltaUbar().
activeSee eventDriven_targetActive().
delta_uSee eventDriven_deltaU().
Returns
Value with which the input perturbation is scaled, see also eventDriven_deltaU().

Definition at line 460 of file UniformMultiLayerIndividualDrive2d.h.

◆ layerElements()

array_type::tensor< size_t, 1 > FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::layerElements ( size_t  i) const
inline

Return the elements belonging to the i-th layer.

Parameters
iIndex of the layer.
Returns
List of element numbers.

Definition at line 325 of file UniformMultiLayerIndividualDrive2d.h.

◆ layerFdrive()

array_type::tensor< double, 2 > FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::layerFdrive ( ) const
inline

Force of each of the driving springs.

The only non-zero contribution comes from:

  • springs that are active, see layerSetTargetActive(), and
  • layers whose average displacement is different from its target value.
Returns
[nlayer, ndim].

Definition at line 671 of file UniformMultiLayerIndividualDrive2d.h.

◆ layerIsPlastic()

const array_type::tensor< bool, 1 > & FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::layerIsPlastic ( ) const
inline

Return if a layer is elastic (false) or plastic (true).

Returns
[nlayer].

Definition at line 346 of file UniformMultiLayerIndividualDrive2d.h.

◆ layerNodes()

array_type::tensor< size_t, 1 > FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::layerNodes ( size_t  i) const
inline

Return the nodes belonging to the i-th layer.

Parameters
iIndex of the layer.
Returns
List of node numbers.

Definition at line 336 of file UniformMultiLayerIndividualDrive2d.h.

◆ layerSetDriveStiffness()

void FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::layerSetDriveStiffness ( double  k,
bool  symmetric = true
)
inline

Set the stiffness of the springs connecting the average displacement of a layer ("ubar") to its set target value.

Note that the stiffness of all springs is taken the same.

Parameters
kThe stiffness.
symmetricIf true the spring is a normal spring. If false the spring has no stiffness under compression.

Definition at line 361 of file UniformMultiLayerIndividualDrive2d.h.

◆ layerSetTargetActive()

template<class T >
void FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::layerSetTargetActive ( const T &  active)
inline

Turn on (or off) springs connecting the average displacement of a layer ("ubar") to its set target value.

Template Parameters
Te.g. array_type::tensor<bool, 2>
Parameters
activeFor each layer and each degree-of-freedom specify if the spring is active (true) or not (false) [nlayer, 2].

Definition at line 512 of file UniformMultiLayerIndividualDrive2d.h.

◆ layerSetTargetUbar()

template<class T >
void FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::layerSetTargetUbar ( const T &  ubar)
inline

Overwrite the target average displacement per layer.

Only layers that have an active driving spring will feel a force (if its average displacement is different from the target displacement), see layerSetTargetActive().

Template Parameters
Te.g. array_type::tensor<double, 2>
Parameters
ubarThe target average position of each layer [nlayer, 2].

Definition at line 582 of file UniformMultiLayerIndividualDrive2d.h.

◆ layerSetUbar()

template<class S , class T >
void FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::layerSetUbar ( const S &  ubar,
const T &  prescribe
)
inline

Move the layer such that the average displacement is exactly equal to its input value.

Template Parameters
Se.g. array_type::tensor<double, 2>
Te.g. array_type::tensor<bool, 2>
Parameters
ubarThe target average position of each layer [nlayer, 2].
prescribePer layers/degree-of-freedom specify if its average is modified [nlayer, 2]. Note that this not modify which of the driving springs is active or not, that can only be changed using layerSetTargetActive().

Definition at line 604 of file UniformMultiLayerIndividualDrive2d.h.

◆ layerTargetActive()

const array_type::tensor< bool, 2 > & FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::layerTargetActive ( ) const
inline

List if the driving spring is activate.

Returns
[nlayer, 2]

Definition at line 567 of file UniformMultiLayerIndividualDrive2d.h.

◆ layerTargetUbar()

const array_type::tensor< double, 2 > & FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::layerTargetUbar ( ) const
inline

List the target average displacement per layer.

Returns
[nlayer, 2]

Definition at line 558 of file UniformMultiLayerIndividualDrive2d.h.

◆ layerTargetUbar_affineSimpleShear()

template<class T >
array_type::tensor< double, 2 > FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::layerTargetUbar_affineSimpleShear ( double  delta_gamma,
const T &  height
) const
inline

Get target average displacements that correspond to affine simple shear (with the bottom fixed).

In particular \( \bar{u}_x^i = 2 \Delta \gamma h_i \) with \( \bar{u}_x^i \) the \( x \)-component of the target average displacement of layer \( i \).

Template Parameters
Te.g. array_type::tensor<double, 1>
Parameters
delta_gammaAffine strain to add.
heightThe height \( h_i \) of the loading frame of each layer [nlayer].

Definition at line 637 of file UniformMultiLayerIndividualDrive2d.h.

◆ layerUbar()

array_type::tensor< double, 2 > FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::layerUbar ( )
inline

List the average displacement of each layer.

Requires to recompute the average displacements (as they are normally only computed on the driven DOFs).

Returns
Average displacement per layer [nlayer, 2]

Definition at line 527 of file UniformMultiLayerIndividualDrive2d.h.

◆ N()

size_t FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::N ( ) const
inlineoverridevirtual

Return the linear system size (in number of blocks).

Reimplemented from FrictionQPotFEM::Generic2d::System.

Definition at line 301 of file UniformMultiLayerIndividualDrive2d.h.

◆ nlayer()

size_t FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::nlayer ( ) const
inline

Return number of layers.

Returns
Number of layers.

Definition at line 315 of file UniformMultiLayerIndividualDrive2d.h.

◆ type()

std::string FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::type ( ) const
inlineoverridevirtual

Return the type of system.

Reimplemented from FrictionQPotFEM::Generic2d::System.

Reimplemented in FrictionQPotFEM::UniformMultiLayerLeverDrive2d::System.

Definition at line 306 of file UniformMultiLayerIndividualDrive2d.h.

◆ updated_u()

void FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::updated_u ( )
inlineoverrideprotectedvirtual

Evaluate relevant forces when m_u is updated.

Reimplemented from FrictionQPotFEM::Generic2d::System.

Reimplemented in FrictionQPotFEM::UniformMultiLayerLeverDrive2d::System.

Definition at line 749 of file UniformMultiLayerIndividualDrive2d.h.

Member Data Documentation

◆ m_drive_k

double FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_drive_k
protected

Stiffness of the drive control frame.

Definition at line 784 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_drive_spring_symmetric

bool FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_drive_spring_symmetric
protected

If false the drive spring buckles in compression.

Definition at line 783 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_dV

array_type::tensor<double, 2> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_dV
protected

copy of m_quad.dV()

Definition at line 792 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_fdrive

array_type::tensor<double, 2> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_fdrive
protected

Force related to driving frame.

Definition at line 789 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_layer_dV1

array_type::tensor<double, 2> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_layer_dV1
protected

volume per layer (as vector, same for all dimensions)

Definition at line 791 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_layer_elem

std::vector<array_type::tensor<size_t, 1> > FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_layer_elem
protected

Elements per layer.

Definition at line 776 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_layer_is_plastic

array_type::tensor<bool, 1> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_layer_is_plastic
protected

Per layer true if the layer is plastic.

Definition at line 777 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_layer_node

std::vector<array_type::tensor<size_t, 1> > FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_layer_node
protected

Nodes per layer.

Definition at line 775 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_layer_ubar

array_type::tensor<double, 2> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_layer_ubar
protected

◆ m_layerdrive_active

array_type::tensor<bool, 2> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_layerdrive_active
protected

See prescribe in layerSetTargetUbar()

Definition at line 785 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_layerdrive_targetubar

array_type::tensor<double, 2> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_layerdrive_targetubar
protected

Per layer, the prescribed average position.

Definition at line 787 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_N

size_t FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_N
protected

Linear system size.

Definition at line 773 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_n_layer

size_t FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_n_layer
protected

Number of layers.

Definition at line 774 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_pert_layerdrive_active

array_type::tensor<bool, 2> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_pert_layerdrive_active
protected

Event driven: applied lever setting.

Definition at line 796 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_pert_layerdrive_targetubar

array_type::tensor<double, 2> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_pert_layerdrive_targetubar
protected

Event driven: applied lever setting.

Definition at line 798 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_slice_elas

array_type::tensor<size_t, 1> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_slice_elas
protected

How to slice plastic_elem(): start & end index.

Definition at line 781 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_slice_index

array_type::tensor<size_t, 1> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_slice_index
protected

Per layer the index in m_slice_plas or m_slice_elas.

Definition at line 779 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_slice_plas

array_type::tensor<size_t, 1> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_slice_plas
protected

How to slice elastic_elem(): start & end index.

Definition at line 780 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_ud

array_type::tensor<double, 1> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_ud
protected

dofval

Definition at line 794 of file UniformMultiLayerIndividualDrive2d.h.

◆ m_uq

array_type::tensor<double, 3> FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System::m_uq
protected

qvector

Definition at line 793 of file UniformMultiLayerIndividualDrive2d.h.


The documentation for this class was generated from the following file:
