System with elastic elements and plastic elements (GMatElastoPlasticQPot). More...

#include <FrictionQPotFEM/Generic2d.h>

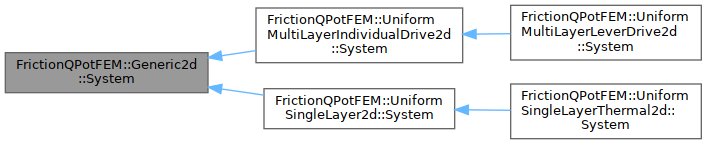

Inheritance diagram for FrictionQPotFEM::Generic2d::System:

[legend]

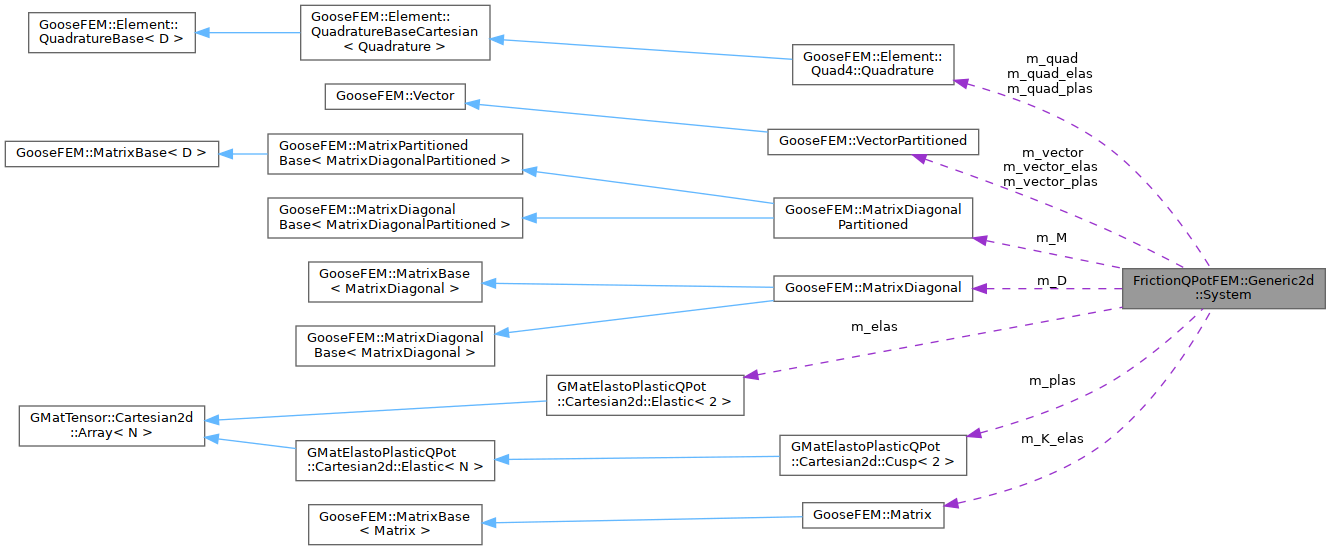

Collaboration diagram for FrictionQPotFEM::Generic2d::System:

[legend]

Public Member Functions
template<class C , class E , class L , class M , class Y >
	System (const C &coor, const E &conn, const E &dofs, const L &iip, const L &elastic_elem, const M &elastic_K, const M &elastic_G, const L &plastic_elem, const M &plastic_K, const M &plastic_G, const Y &plastic_epsy, double dt, double rho, double alpha, double eta)
	Define the geometry, including boundary conditions and element sets. More...

virtual size_t	N () const
	Return the linear system size (in number of blocks). More...

virtual std::string	type () const
	Return the type of system. More...

double	rho () const
	Mass density. More...

void	setRho (double rho)
	Overwrite the mass density to a homogeneous quantity. More...

template<class T >
void	setMassMatrix (const T &val_elem)
	Overwrite mass matrix, based on certain density that is uniform per element. More...

void	setEta (double eta)
	Overwrite the value of the damping at the interface. More...

double	eta () const
	Get the damping at the interface. More...

void	setAlpha (double alpha)
	Overwrite background damping density (proportional to the velocity), To use a non-homogeneous density use setDampingMatrix(). More...

double	alpha () const
	Background damping density. More...

template<class T >
void	setDampingMatrix (const T &val_elem)
	Overwrite damping matrix, based on certain density (taken uniform per element). More...

bool	isHomogeneousElastic () const
	Check if elasticity is homogeneous. More...

double	dt () const
	Get time step. More...

void	setDt (double dt)
	Overwrite time step. More...

template<class T >
void	setU (const T &u)
	Overwrite nodal displacements. More...

template<class T >
void	setV (const T &v)
	Overwrite nodal velocities. More...

template<class T >
void	setA (const T &a)
	Overwrite nodal accelerations. More...

virtual void	updated_u ()
	Evaluate relevant forces when m_u is updated. More...

void	updated_v ()
	Evaluate relevant forces when m_v is updated. More...

template<class T >
void	setFext (const T &fext)
	Overwrite external force. More...

const auto &	elastic_elem () const
	List of elastic elements. More...

const auto &	plastic_elem () const
	List of plastic elements. More...

const auto &	conn () const
	Connectivity. More...

const auto &	coor () const
	Nodal coordinates. More...

const auto &	dofs () const
	DOFs per node. More...

const auto &	u () const
	Nodal displacements. More...

const auto &	v () const
	Nodal velocities. More...

const auto &	a () const
	Nodal accelerations. More...

auto &	mass () const
	Mass matrix, see System::m_M. More...

auto &	damping () const
	Damping matrix, see setAlpha() and setDampingMatrix(). More...

const auto &	fext ()
	External force. More...

void	applyShearStress (double sigxy)
	Modify the external force such that a shear stress is applied to the top boundary. More...

const auto &	fint ()
	Internal force. More...

const auto &	fmaterial () const
	Force deriving from elasticity. More...

const auto &	fdamp () const
	Force deriving from damping. More...

double	residual () const
	Norm of the relative residual force (the external force at the top/bottom boundaries is used for normalisation). More...

void	quench ()
	Set nodal velocities and accelerations equal to zero. More...

double	t () const
	Current time. More...

void	setT (double arg)
	Overwrite time. More...

size_t	inc () const
	The increment, see setInc(). More...

virtual void	setInc (size_t arg)
	Set increment. More...

const auto &	dV () const
	Integration point volume (of each integration point) More...

const GooseFEM::VectorPartitioned &	vector () const
	GooseFEM vector definition. More...

const GooseFEM::Element::Quad4::Quadrature &	quad () const
	GooseFEM quadrature definition. More...

GMatElastoPlasticQPot::Cartesian2d::Elastic< 2 > &	elastic ()
	Elastic material mode, used for all elastic elements. More...

GMatElastoPlasticQPot::Cartesian2d::Cusp< 2 > &	plastic ()
	Elastic material mode, used for all elastic elements. More...

array_type::tensor< double, 2 >	K () const
	Bulk modulus per integration point. More...

array_type::tensor< double, 2 >	G () const
	Shear modulus per integration point. More...

const array_type::tensor< double, 4 > &	Sig ()
	Stress tensor of each integration point. More...

const array_type::tensor< double, 4 > &	Eps ()
	Strain tensor of each integration point. More...

array_type::tensor< double, 4 >	Epsdot () const
	Strain-rate tensor (the symmetric gradient of the nodal velocities) of each integration point. More...

array_type::tensor< double, 4 >	Epsddot () const
	Symmetric gradient of the nodal accelerations of each integration point. More...

GooseFEM::MatrixPartitioned	stiffness () const
	Stiffness tensor of each integration point. More...

const array_type::tensor< double, 4 > &	plastic_Epsdot ()
	Strain-rate tensor of integration points of plastic elements only, see System::plastic. More...

void	refresh ()
	Recompute all forces. More...

template<class T >
double	eventDriven_setDeltaU (const T &delta_u, bool autoscale=true)
	Set purely elastic and linear response to specific boundary conditions. More...

const auto &	eventDriven_deltaU () const
	Get displacement perturbation used for event driven code, see eventDriven_setDeltaU(). More...

virtual double	eventDrivenStep (double deps, bool kick, int direction=1, bool yield_element=false, bool iterative=false)
	Add event driven step for the boundary conditions that correspond to the displacement perturbation set in eventDriven_setDeltaU(). More...

void	timeStep ()
	Make a time-step: apply velocity-Verlet integration. More...

long	timeSteps (size_t n, size_t nmargin=0)
	Make a number of time steps, see timeStep(). More...

size_t	timeStepsUntilEvent (size_t nmargin=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
	Perform a series of time-steps until the next plastic event, or equilibrium. More...

std::tuple< array_type::tensor< double, 1 >, array_type::tensor< double, 2 >, array_type::tensor< double, 2 > >	minimise_highfrequency (const array_type::tensor< size_t, 1 > &nodes, const array_type::tensor< size_t, 1 > &top, size_t t_step=1, size_t nmargin=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
	Minimise energy while doing a high-frequency measurement of: More...

template<class T >
long	flowSteps (size_t n, const T &v, size_t nmargin=0)
	Make a number of steps with the following protocol. More...

long	minimise (size_t nmargin=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7, bool time_activity=false, bool max_iter_is_error=true)
	Minimise energy: run System::timeStep until a mechanical equilibrium has been reached. More...

size_t	quasistaticActivityFirst () const
	Increment with the first plastic event. More...

size_t	quasistaticActivityLast () const
	Increment with the last plastic event. More...

template<class T >
size_t	minimise_truncate (const T &idx_n, size_t A_truncate=0, size_t S_truncate=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
	Like Generic2d::minimise(), but stops when a certain number of blocks has yielded at least once. More...

size_t	minimise_truncate (size_t A_truncate=0, size_t S_truncate=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
	Like Generic2d::minimise(), but stops when a certain number of blocks has yielded at least once. More...

array_type::tensor< double, 2 >	affineSimpleShear (double delta_gamma) const
	Get the displacement field that corresponds to an affine simple shear of a certain strain. More...

array_type::tensor< double, 2 >	affineSimpleShearCentered (double delta_gamma) const
	Get the displacement field that corresponds to an affine simple shear of a certain strain. More...

Protected Member Functions
void	computeEpsSig ()
	Compute m_Sig and m_Eps using m_u. More...

void	computeForceMaterial ()
	Update m_fmaterial based on the current displacement field m_u. More...

virtual void	computeInternalExternalResidualForce ()
	Compute: More...

Protected Attributes
array_type::tensor< double, 2 >	m_coor
	Nodal coordinates, see coor(). More...

size_t	m_N
	Number of plastic elements, alias of m_nelem_plas. More...

size_t	m_nelem
	Number of elements. More...

size_t	m_nelem_elas
	Number of elastic elements. More...

size_t	m_nelem_plas
	Number of plastic elements. More...

size_t	m_nne
	Number of nodes per element. More...

size_t	m_nnode
	Number of nodes. More...

size_t	m_ndim
	Number of spatial dimensions. More...

size_t	m_nip
	Number of integration points. More...

array_type::tensor< size_t, 1 >	m_elem_elas
	Elastic elements. More...

array_type::tensor< size_t, 1 >	m_elem_plas
	Plastic elements. More...

GooseFEM::Element::Quad4::Quadrature	m_quad
	Quadrature for all elements. More...

GooseFEM::Element::Quad4::Quadrature	m_quad_elas
	m_quad for elastic elements only. More...

GooseFEM::Element::Quad4::Quadrature	m_quad_plas
	m_quad for plastic elements only. More...

GooseFEM::VectorPartitioned	m_vector
	Convert vectors between 'nodevec', 'elemvec', .... More...

GooseFEM::VectorPartitioned	m_vector_elas
	m_vector for elastic elements only. More...

GooseFEM::VectorPartitioned	m_vector_plas
	m_vector for plastic elements only. More...

GooseFEM::MatrixDiagonalPartitioned	m_M
	Mass matrix (diagonal). More...

GooseFEM::MatrixDiagonal	m_D
	Damping matrix (diagonal). More...

GMatElastoPlasticQPot::Cartesian2d::Elastic< 2 >	m_elas
	Material for elastic el. More...

GMatElastoPlasticQPot::Cartesian2d::Cusp< 2 >	m_plas
	Material for plastic el. More...

array_type::tensor< double, 2 >	m_u
	Nodal displacements. More...

array_type::tensor< double, 2 >	m_v
	Nodal velocities. More...

array_type::tensor< double, 2 >	m_a
	Nodal accelerations. More...

array_type::tensor< double, 2 >	m_v_n
	Nodal velocities last time-step. More...

array_type::tensor< double, 2 >	m_a_n
	Nodal accelerations last time-step. More...

array_type::tensor< double, 3 >	m_ue
	Element vector (used for displacements). More...

array_type::tensor< double, 3 >	m_fe
	Element vector (used for forces). More...

array_type::tensor< double, 3 >	m_ue_elas
	m_ue for elastic element only More...

array_type::tensor< double, 3 >	m_fe_elas
	m_fe for elastic element only More...

array_type::tensor< double, 3 >	m_ue_plas
	m_ue for plastic element only More...

array_type::tensor< double, 3 >	m_fe_plas
	m_fe for plastic element only More...

array_type::tensor< double, 2 >	m_fmaterial
	Nodal force, deriving from elasticity. More...

array_type::tensor< double, 2 >	m_felas
	Nodal force from elasticity of elastic elements. More...

array_type::tensor< double, 2 >	m_fplas
	Nodal force from elasticity of plastic elements. More...

array_type::tensor< double, 2 >	m_fdamp
	Nodal force from damping. More...

array_type::tensor< double, 2 >	m_fvisco
	Nodal force from damping at the interface. More...

array_type::tensor< double, 2 >	m_ftmp
	Temporary for internal use. More...

array_type::tensor< double, 2 >	m_fint
	Nodal force: total internal force. More...

array_type::tensor< double, 2 >	m_fext
	Nodal force: total external force (reaction force) More...

array_type::tensor< double, 2 >	m_fres
	Nodal force: residual force. More...

array_type::tensor< double, 4 >	m_Eps
	Quad-point tensor: strain. More...

array_type::tensor< double, 4 >	m_Sig
	Quad-point tensor: stress. More...

array_type::tensor< double, 4 >	m_Epsdot_plas
	Quad-point tensor: strain-rate for plastic el. More...

GooseFEM::Matrix	m_K_elas
	Stiffness matrix for elastic elements only. More...

size_t	m_qs_inc_first = 0
	First increment with plastic activity during minimisation. More...

size_t	m_qs_inc_last = 0
	Last increment with plastic activity during minimisation. More...

size_t	m_inc
	Current increment (current time = m_dt * m_inc). More...

double	m_dt
	Time-step. More...

double	m_eta
	Damping at the interface. More...

double	m_rho
	Mass density (non-zero only if homogeneous). More...

double	m_alpha
	Background damping density (non-zero only if homogeneous). More...

bool	m_set_D
	Use m_D only if it is non-zero. More...

bool	m_set_visco
	Use m_eta only if it is non-zero. More...

bool	m_full_outdated
	Keep track of the need to recompute fields on full geometry. More...

array_type::tensor< double, 2 >	m_pert_u
	See eventDriven_setDeltaU() More...

array_type::tensor< double, 4 >	m_pert_Epsd_plastic
	Strain deviator for m_pert_u. More...

Detailed Description

System with elastic elements and plastic elements (GMatElastoPlasticQPot).

For efficiency, the nodal forces for the elastic elements are evaluated using the tangent. This means that getting stresses and strains in those elements is not for free. Therefore, there are separate methods to get stresses and strains only in the plastic elements (as they are readily available as they are needed for the force computation).

Definition at line 183 of file Generic2d.h.

Constructor & Destructor Documentation

◆ ~System()

virtual FrictionQPotFEM::Generic2d::System::~System ( )

inlinevirtual

Definition at line 189 of file Generic2d.h.

◆ System()

template<class C , class E , class L , class M , class Y >

FrictionQPotFEM::Generic2d::System::System	(	const C &	coor,
		const E &	conn,
		const E &	dofs,
		const L &	iip,
		const L &	elastic_elem,
		const M &	elastic_K,
		const M &	elastic_G,
		const L &	plastic_elem,
		const M &	plastic_K,
		const M &	plastic_G,
		const Y &	plastic_epsy,
		double	dt,
		double	rho,
		double	alpha,
		double	eta
	)

inline

Define the geometry, including boundary conditions and element sets.

Template Parameters

C	Type of nodal coordinates, e.g. `array_type::tensor<double, 2>`
E	Type of connectivity and DOFs, e.g. `array_type::tensor<size_t, 2>`
L	Type of node/element lists, e.g. `array_type::tensor<size_t, 1>`

Parameters

coor	Nodal coordinates.
conn	Connectivity.
dofs	DOFs per node.
iip	DOFs whose displacement is fixed.
elastic_elem	Elastic elements.
elastic_K	Bulk modulus per quad. point of each elastic element, see setElastic().
elastic_G	Shear modulus per quad. point of each elastic element, see setElastic().
plastic_elem	Plastic elements.
plastic_K	Bulk modulus per quad. point of each plastic element, see Plastic().
plastic_G	Shear modulus per quad. point of each plastic element, see Plastic().
plastic_epsy	Yield strain per quad. point of each plastic element, see Plastic().
dt	Time step, set setDt().
rho	Mass density, see setMassMatrix().
alpha	Background damping density, see setDampingMatrix().
eta	Damping at the interface (homogeneous), see setEta().

Definition at line 215 of file Generic2d.h.

Member Function Documentation

◆ a()

const auto & FrictionQPotFEM::Generic2d::System::a ( ) const

inline

Nodal accelerations.

Returns: Nodal accelerations.

Definition at line 748 of file Generic2d.h.

◆ affineSimpleShear()

array_type::tensor< double, 2 > FrictionQPotFEM::Generic2d::System::affineSimpleShear ( double delta_gamma ) const

inline

Get the displacement field that corresponds to an affine simple shear of a certain strain.

The displacement of the bottom boundary is zero, while it is maximal for the top boundary.

Parameters

delta_gamma Strain to add (the shear component of deformation gradient is twice that).

Returns: Nodal displacements.

Definition at line 2041 of file Generic2d.h.

◆ affineSimpleShearCentered()

array_type::tensor< double, 2 > FrictionQPotFEM::Generic2d::System::affineSimpleShearCentered ( double delta_gamma ) const

inline

Get the displacement field that corresponds to an affine simple shear of a certain strain.

Similar to affineSimpleShear() with the difference that the displacement is zero exactly in the middle, while the displacement at the bottom and the top boundary is maximal (with a negative displacement for the bottom boundary).

Parameters

delta_gamma Strain to add (the shear component of deformation gradient is twice that).

Returns: Nodal displacements.

Definition at line 2061 of file Generic2d.h.

◆ alpha()

double FrictionQPotFEM::Generic2d::System::alpha ( ) const

inline

Background damping density.

The output is non-zero only if the density is homogeneous. I.e. a zero value does not mean that there is no damping.

Returns: Float

Definition at line 507 of file Generic2d.h.

◆ applyShearStress()

void FrictionQPotFEM::Generic2d::System::applyShearStress ( double sigxy )

inline

Modify the external force such that a shear stress is applied to the top boundary.

Parameters

sigxy The shear stress to be applied.

Definition at line 789 of file Generic2d.h.

◆ computeEpsSig()

void FrictionQPotFEM::Generic2d::System::computeEpsSig ( )

inlineprotected

Compute m_Sig and m_Eps using m_u.

Definition at line 1134 of file Generic2d.h.

◆ computeForceMaterial()

void FrictionQPotFEM::Generic2d::System::computeForceMaterial ( )

inlineprotected

Update m_fmaterial based on the current displacement field m_u.

Definition at line 1179 of file Generic2d.h.

◆ computeInternalExternalResidualForce()

virtual void FrictionQPotFEM::Generic2d::System::computeInternalExternalResidualForce ( )

inlineprotectedvirtual

Compute:

m_fint = m_fmaterial + m_fdamp
m_fext[iip] = m_fint[iip]
m_fres = m_fext - m_fint

Internal rule: all relevant forces are expected to be updated before this function is called.

Reimplemented in FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System, and FrictionQPotFEM::UniformSingleLayerThermal2d::System.

Definition at line 1203 of file Generic2d.h.

◆ conn()

const auto & FrictionQPotFEM::Generic2d::System::conn ( ) const

inline

Connectivity.

Shape: [System::m_nelem, System::m_nne].

Returns: Connectivity.

Definition at line 698 of file Generic2d.h.

◆ coor()

const auto & FrictionQPotFEM::Generic2d::System::coor ( ) const

inline

Nodal coordinates.

Shape: [System::m_nnode, System::m_ndim].

Returns: Nodal coordinates.

Definition at line 708 of file Generic2d.h.

◆ damping()

auto & FrictionQPotFEM::Generic2d::System::damping ( ) const

inline

Damping matrix, see setAlpha() and setDampingMatrix().

Note that there can be second source of damping, see setEta().

Returns: Damping matrix (diagonal).

Definition at line 769 of file Generic2d.h.

◆ dofs()

const auto & FrictionQPotFEM::Generic2d::System::dofs ( ) const

inline

DOFs per node.

Returns: DOFs per node.

Definition at line 718 of file Generic2d.h.

◆ dt()

double FrictionQPotFEM::Generic2d::System::dt ( ) const

inline

Get time step.

Definition at line 566 of file Generic2d.h.

◆ dV()

const auto & FrictionQPotFEM::Generic2d::System::dV ( ) const

inline

Integration point volume (of each integration point)

Returns: Integration point volume (System::m_quad::dV).

Definition at line 928 of file Generic2d.h.

◆ elastic()

GMatElastoPlasticQPot::Cartesian2d::Elastic< 2 > & FrictionQPotFEM::Generic2d::System::elastic ( )

inline

Elastic material mode, used for all elastic elements.

Returns: GMatElastoPlasticQPot::Cartesian2d::Elastic<2>&

Definition at line 959 of file Generic2d.h.

◆ elastic_elem()

const auto & FrictionQPotFEM::Generic2d::System::elastic_elem ( ) const

inline

List of elastic elements.

Shape: [System::m_nelem_elas].

Returns: List of element numbers.

Definition at line 678 of file Generic2d.h.

◆ Eps()

const array_type::tensor< double, 4 > & FrictionQPotFEM::Generic2d::System::Eps ( )

inline

Strain tensor of each integration point.

Returns: Integration point tensor (pointer). Shape: [nelem, nip, 2, 2].

Definition at line 1054 of file Generic2d.h.

◆ Epsddot()

array_type::tensor< double, 4 > FrictionQPotFEM::Generic2d::System::Epsddot ( ) const

inline

Symmetric gradient of the nodal accelerations of each integration point.

Returns: Integration point tensor (copy). Shape: [nelem, nip, 2, 2].

Definition at line 1076 of file Generic2d.h.

◆ Epsdot()

array_type::tensor< double, 4 > FrictionQPotFEM::Generic2d::System::Epsdot ( ) const

inline

Strain-rate tensor (the symmetric gradient of the nodal velocities) of each integration point.

Returns: Integration point tensor (copy). Shape: [nelem, nip, 2, 2].

Definition at line 1066 of file Generic2d.h.

◆ eta()

double FrictionQPotFEM::Generic2d::System::eta ( ) const

inline

Get the damping at the interface.

Returns: Float

Definition at line 478 of file Generic2d.h.

◆ eventDriven_deltaU()

const auto & FrictionQPotFEM::Generic2d::System::eventDriven_deltaU ( ) const

inline

Get displacement perturbation used for event driven code, see eventDriven_setDeltaU().

Returns: Nodal displacements.

Definition at line 1261 of file Generic2d.h.

◆ eventDriven_setDeltaU()

template<class T >

double FrictionQPotFEM::Generic2d::System::eventDriven_setDeltaU	(	const T &	delta_u,
		bool	autoscale = `true`
	)

inline

Set purely elastic and linear response to specific boundary conditions.

Since this response is linear and elastic it can be scaled freely to transverse a fully elastic interval at once, without running any dynamics, and run an event driven code using eventDrivenStep().

Parameters

delta_u	Nodal displacement field.
autoscale	Scale such that the perturbation is small enough.

Returns: Value with which the input perturbation is scaled, see also eventDriven_deltaU().

Definition at line 1234 of file Generic2d.h.

◆ eventDrivenStep()

virtual double FrictionQPotFEM::Generic2d::System::eventDrivenStep	(	double	deps,
		bool	kick,
		int	direction = `1`,
		bool	yield_element = `false`,
		bool	iterative = `false`
	)

inlinevirtual

Add event driven step for the boundary conditions that correspond to the displacement perturbation set in eventDriven_setDeltaU().

Todo:: The current implementation is suited for unloading, but only until the first yield strain. An improved implementation is needed to deal with the symmetry of the equivalent strain. A FRICTIONQPOTFEM_WIP assertion is made.

Parameters

deps	Size of the local stain kick to apply.
kick	If `false`, increment displacements to `deps / 2` of yielding again. If `true`, increment displacements by a affine simple shear increment `deps`.
direction	If `+1`: apply shear to the right. If `-1` applying shear to the left.
yield_element	If `true` and `kick == true` then the element closest to yielding is selected (as normal), but of that element the displacement update is the maximum of the element, such that all integration points of the element are forced to yield.
iterative	If `true` the step is iteratively searched. This is more costly by recommended, if the perturbation is non-analytical (and contains numerical errors).

Returns: Factor with which the displacement perturbation, see eventDriven_deltaU(), is scaled.

Reimplemented in FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System, and FrictionQPotFEM::UniformMultiLayerLeverDrive2d::System.

Definition at line 1300 of file Generic2d.h.

◆ fdamp()

const auto & FrictionQPotFEM::Generic2d::System::fdamp ( ) const

inline

Force deriving from damping.

This force is the sum of damping at the interface plus that of background damping (or just one of both if just one is specified).

Returns: Nodal force. Shape [nnode, ndim] .

Definition at line 854 of file Generic2d.h.

◆ fext()

const auto & FrictionQPotFEM::Generic2d::System::fext ( )

inline

External force.

Returns: Nodal force. Shape [nnode, ndim] .

Definition at line 779 of file Generic2d.h.

◆ fint()

const auto & FrictionQPotFEM::Generic2d::System::fint ( )

inline

Internal force.

Returns: Nodal force. Shape [nnode, ndim] .

Definition at line 831 of file Generic2d.h.

◆ flowSteps()

template<class T >

long FrictionQPotFEM::Generic2d::System::flowSteps	(	size_t	n,
		const T &	v,
		size_t	nmargin = `0`
	)

inline

Make a number of steps with the following protocol.

Add a displacement \( \underline{v} \Delta t \) to each of the nodes.
Make a timeStep().

Parameters

n	Number of steps to make.
v	Nodal velocity `[nnode, ndim]`.s
nmargin	Number of potentials to leave as margin. `nmargin > 0`: stop if the yield-index of any box is `nmargin` from the end, and return a negative number. `nmargin == 0`: no bounds-check is performed (the last potential is assumed infinitely elastic to the right).

Returns: Number of time-steps made (negative if failure).

Definition at line 1803 of file Generic2d.h.

◆ fmaterial()

const auto & FrictionQPotFEM::Generic2d::System::fmaterial ( ) const

inline

Force deriving from elasticity.

Returns: Nodal force. Shape [nnode, ndim] .

Definition at line 842 of file Generic2d.h.

◆ G()

array_type::tensor< double, 2 > FrictionQPotFEM::Generic2d::System::G ( ) const

inline

Shear modulus per integration point.

Convenience function: assembles output from elastic() and plastic().

Returns: Integration point scalar (copy). Shape: [nelem, nip].

Definition at line 1012 of file Generic2d.h.

◆ inc()

size_t FrictionQPotFEM::Generic2d::System::inc ( ) const

inline

The increment, see setInc().

Returns: size_t.

Definition at line 909 of file Generic2d.h.

◆ isHomogeneousElastic()

bool FrictionQPotFEM::Generic2d::System::isHomogeneousElastic ( ) const

inline

Check if elasticity is homogeneous.

Returns: true is elasticity is homogeneous (false otherwise).

Definition at line 554 of file Generic2d.h.

◆ K()

array_type::tensor< double, 2 > FrictionQPotFEM::Generic2d::System::K ( ) const

inline

Bulk modulus per integration point.

Convenience function: assembles output from elastic() and plastic().

Returns: Integration point scalar (copy). Shape: [nelem, nip].

Definition at line 980 of file Generic2d.h.

◆ mass()

auto & FrictionQPotFEM::Generic2d::System::mass ( ) const

inline

Mass matrix, see System::m_M.

Returns: Mass matrix (diagonal, partitioned).

Definition at line 758 of file Generic2d.h.

◆ minimise()

long FrictionQPotFEM::Generic2d::System::minimise	(	size_t	nmargin = `0`,
		double	tol = `1e-5`,
		size_t	niter_tol = `20`,
		size_t	max_iter = `1e7`,
		bool	time_activity = `false`,
		bool	max_iter_is_error = `true`
	)

inline

Minimise energy: run System::timeStep until a mechanical equilibrium has been reached.

Can also be used to run n time-steps (or < n is equilibrium is reached before). In that case, call with minimise(max_iter=n, max_iter_is_error=False)

Parameters

nmargin	Number of potentials to leave as margin. `nmargin > 0`: stop if the yield-index of any box is `nmargin` from the end and return a negative number. `nmargin == 0`: no bounds-check is performed (the last potential is assumed infinitely elastic to the right).
tol	Relative force tolerance for equilibrium. See System::residual for definition.
niter_tol	Enforce the residual check for `niter_tol` consecutive increments.
max_iter	Maximum number of time-steps. Throws `std::runtime_error` otherwise.
time_activity	If `true` plastic activity is timed. After this function you can find: quasistaticActivityFirst() : Increment with the first plastic event. quasistaticActivityLast() : Increment with the last plastic event. Attention: if you are changing the chunk of yield positions during the minimisation you should copy quasistaticActivityFirst() after the first (relevant) call of minimise(): each time you call minimise(), quasistaticActivityFirst() is reset.
max_iter_is_error	If `true` an error is thrown when the maximum number of time-steps is reached. If `false` the function simply returns `max_iter`.

Returns

0: if stopped when the residual is reached (and number of steps < max_iter).
max_iter: if no residual was reached, and max_iter_is_error = false.
Negative number: if stopped because of a yield-index margin.

Definition at line 1868 of file Generic2d.h.

◆ minimise_highfrequency()

std::tuple< array_type::tensor< double, 1 >, array_type::tensor< double, 2 >, array_type::tensor< double, 2 > > FrictionQPotFEM::Generic2d::System::minimise_highfrequency	(	const array_type::tensor< size_t, 1 > &	nodes,
		const array_type::tensor< size_t, 1 > &	top,
		size_t	t_step = `1`,
		size_t	nmargin = `0`,
		double	tol = `1e-5`,
		size_t	niter_tol = `20`,
		size_t	max_iter = `1e7`
	)

inline

Minimise energy while doing a high-frequency measurement of:

The average force at the top boundary.
The displacement, velocity, and acceleration of selected nodes.

Parameters

nodes	List of nodes to sample.
top	Nodes of the top boundary. `f_x = sum(fext[top, 0]) / (top.size - 1)` (accounting for periodicity).
t_step	Sample every `t_step` time steps.
nmargin	Number of potentials to have as margin initially.
tol	Relative force tolerance for equilibrium. See System::residual for definition.
niter_tol	Enforce the residual check for `niter_tol` consecutive increments.
max_iter	Maximum number of iterations. Throws `std::runtime_error` otherwise.

Returns: A tuple (f_x, u_x, u_y). For the latter three the rows correspond to the selected nodes.

Definition at line 1702 of file Generic2d.h.

◆ minimise_truncate() [1/2]

template<class T >

size_t FrictionQPotFEM::Generic2d::System::minimise_truncate	(	const T &	idx_n,
		size_t	A_truncate = `0`,
		size_t	S_truncate = `0`,
		double	tol = `1e-5`,
		size_t	niter_tol = `20`,
		size_t	max_iter = `1e7`
	)

inline

Like Generic2d::minimise(), but stops when a certain number of blocks has yielded at least once.

In that case the function returns zero (in all other cases it returns a positive number).

Note: A_truncate and S_truncate are defined on the first integration point.

Parameters

A_truncate	Truncate if `A_truncate` blocks have yielded at least once.
S_truncate	Truncate if the number of times blocks yielded is equal to `S_truncate`. Warning This option is reserved for future use, but for the moment does nothing.
tol	Relative force tolerance for equilibrium. See System::residual for definition.
niter_tol	Enforce the residual check for `niter_tol` consecutive increments.
max_iter	Maximum number of time-steps. Throws `std::runtime_error` otherwise.

This overload can be used to specify a reference state when manually triggering. If triggering is done before calling this function, already one block yielded, making A_truncate and S_truncate inaccurate.

Parameters

idx_n Reference potential index of the first integration point.

Definition at line 1962 of file Generic2d.h.

◆ minimise_truncate() [2/2]

size_t FrictionQPotFEM::Generic2d::System::minimise_truncate	(	size_t	A_truncate = `0`,
		size_t	S_truncate = `0`,
		double	tol = `1e-5`,
		size_t	niter_tol = `20`,
		size_t	max_iter = `1e7`
	)

inline

Like Generic2d::minimise(), but stops when a certain number of blocks has yielded at least once.

In that case the function returns zero (in all other cases it returns a positive number).

Note: A_truncate and S_truncate are defined on the first integration point.

Parameters

A_truncate	Truncate if `A_truncate` blocks have yielded at least once.
S_truncate	Truncate if the number of times blocks yielded is equal to `S_truncate`. Warning This option is reserved for future use, but for the moment does nothing.
tol	Relative force tolerance for equilibrium. See System::residual for definition.
niter_tol	Enforce the residual check for `niter_tol` consecutive increments.
max_iter	Maximum number of time-steps. Throws `std::runtime_error` otherwise.

Definition at line 2023 of file Generic2d.h.

◆ N()

virtual size_t FrictionQPotFEM::Generic2d::System::N ( ) const

inlinevirtual

Return the linear system size (in number of blocks).

Reimplemented in FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System.

Definition at line 385 of file Generic2d.h.

◆ plastic()

GMatElastoPlasticQPot::Cartesian2d::Cusp< 2 > & FrictionQPotFEM::Generic2d::System::plastic ( )

inline

Elastic material mode, used for all elastic elements.

Returns: GMatElastoPlasticQPot::Cartesian2d::Cusp<2>&

Definition at line 969 of file Generic2d.h.

◆ plastic_elem()

const auto & FrictionQPotFEM::Generic2d::System::plastic_elem ( ) const

inline

List of plastic elements.

Shape: [System::m_nelem_plas].

Returns: List of element numbers.

Definition at line 688 of file Generic2d.h.

◆ plastic_Epsdot()

const array_type::tensor< double, 4 > & FrictionQPotFEM::Generic2d::System::plastic_Epsdot ( )

inline

Strain-rate tensor of integration points of plastic elements only, see System::plastic.

Returns: Integration point tensor (pointer). Shape: [plastic_elem().size(), nip, 2, 2].

Definition at line 1119 of file Generic2d.h.

◆ quad()

const GooseFEM::Element::Quad4::Quadrature & FrictionQPotFEM::Generic2d::System::quad ( ) const

inline

GooseFEM quadrature definition.

Takes case of interpolation, integration, and differentiation.

Returns: GooseFEM::Element::Quad4::Quadrature (System::m_quad)

Definition at line 949 of file Generic2d.h.

◆ quasistaticActivityFirst()

size_t FrictionQPotFEM::Generic2d::System::quasistaticActivityFirst ( ) const

inline

Increment with the first plastic event.

This value is only relevant if time_activity = true was used in the last call of minimise().

Returns: Increment.

Definition at line 1936 of file Generic2d.h.

◆ quasistaticActivityLast()

size_t FrictionQPotFEM::Generic2d::System::quasistaticActivityLast ( ) const

inline

Increment with the last plastic event.

This value is only relevant if time_activity = true was used in the last call of minimise().

Returns: Increment.

Definition at line 1947 of file Generic2d.h.

◆ quench()

void FrictionQPotFEM::Generic2d::System::quench ( )

inline

Set nodal velocities and accelerations equal to zero.

Call this function after an energy minimisation (taken care of in System::minimise).

Definition at line 880 of file Generic2d.h.

◆ refresh()

void FrictionQPotFEM::Generic2d::System::refresh ( )

inline

Recompute all forces.

Under normal circumstances, this function is called automatically when needed.

Definition at line 1215 of file Generic2d.h.

◆ residual()

double FrictionQPotFEM::Generic2d::System::residual ( ) const

inline

Norm of the relative residual force (the external force at the top/bottom boundaries is used for normalisation).

Returns: Relative residual.

Definition at line 865 of file Generic2d.h.

◆ rho()

double FrictionQPotFEM::Generic2d::System::rho ( ) const

inline

Mass density.

The output is non-zero only if the density is homogeneous. I.e. a zero value does not mean that there is no mass.

Returns: Float

Definition at line 406 of file Generic2d.h.

◆ setA()

template<class T >

void FrictionQPotFEM::Generic2d::System::setA ( const T & a )

inline

Overwrite nodal accelerations.

Parameters

a	`[nnode, ndim]`.

Definition at line 615 of file Generic2d.h.

◆ setAlpha()

void FrictionQPotFEM::Generic2d::System::setAlpha ( double alpha )

inline

Overwrite background damping density (proportional to the velocity), To use a non-homogeneous density use setDampingMatrix().

Parameters

alpha Damping parameter.

Definition at line 489 of file Generic2d.h.

◆ setDampingMatrix()

template<class T >

void FrictionQPotFEM::Generic2d::System::setDampingMatrix ( const T & val_elem )

inline

Overwrite damping matrix, based on certain density (taken uniform per element).

This function allows for more heterogeneity than the constructor. Note that you can specify either setEta() or setDampingMatrix() or both. To use a homogeneous system, use setAlpha().

Parameters

val_elem Damping per element.

Definition at line 521 of file Generic2d.h.

◆ setDt()

void FrictionQPotFEM::Generic2d::System::setDt ( double dt )

inline

Overwrite time step.

Using for example in System::timeStep and System::minimise.

Definition at line 574 of file Generic2d.h.

◆ setEta()

void FrictionQPotFEM::Generic2d::System::setEta ( double eta )

inline

Overwrite the value of the damping at the interface.

Note that you can specify either setEta() or setDampingMatrix() or both.

Parameters

eta	Damping parameter

Definition at line 461 of file Generic2d.h.

◆ setFext()

template<class T >

void FrictionQPotFEM::Generic2d::System::setFext ( const T & fext )

inline

Overwrite external force.

Note: the external force on the DOFs whose displacement are prescribed are response forces computed during timeStep(). Internally on the system of unknown DOFs is solved, so any change to the response forces is ignored.

Parameters

fext	`[nnode, ndim]`.

Definition at line 667 of file Generic2d.h.

◆ setInc()

virtual void FrictionQPotFEM::Generic2d::System::setInc ( size_t arg )

inlinevirtual

Set increment.

Parameters

arg size_t.

Reimplemented in FrictionQPotFEM::UniformSingleLayerThermal2d::System.

Definition at line 918 of file Generic2d.h.

◆ setMassMatrix()

template<class T >

void FrictionQPotFEM::Generic2d::System::setMassMatrix ( const T & val_elem )

inline

Overwrite mass matrix, based on certain density that is uniform per element.

This function allows for more heterogeneity than the constructor. To use a homogeneous system, use setRho().

Template Parameters

T	e.g. `array_type::tensor<double, 1>`.

Parameters

val_elem Density per element.

Definition at line 431 of file Generic2d.h.

◆ setRho()

void FrictionQPotFEM::Generic2d::System::setRho ( double rho )

inline

Overwrite the mass density to a homogeneous quantity.

To use a non-homogeneous density use setMassMatrix().

Parameters

rho	Mass density.

Definition at line 417 of file Generic2d.h.

◆ setT()

void FrictionQPotFEM::Generic2d::System::setT ( double arg )

inline

Overwrite time.

Definition at line 899 of file Generic2d.h.

◆ setU()

template<class T >

void FrictionQPotFEM::Generic2d::System::setU ( const T & u )

inline

Overwrite nodal displacements.

Internally, this updates the relevant forces using updated_u().

Parameters

u	`[nnode, ndim]`.

Definition at line 586 of file Generic2d.h.

◆ setV()

template<class T >

void FrictionQPotFEM::Generic2d::System::setV ( const T & v )

inline

Overwrite nodal velocities.

Internally, this updates the relevant forces using updated_v().

Parameters

v	`[nnode, ndim]`.

Definition at line 601 of file Generic2d.h.

◆ Sig()

const array_type::tensor< double, 4 > & FrictionQPotFEM::Generic2d::System::Sig ( )

inline

Stress tensor of each integration point.

Returns: Integration point tensor (pointer). Shape: [nelem, nip, 2, 2].

Definition at line 1043 of file Generic2d.h.

◆ stiffness()

GooseFEM::MatrixPartitioned FrictionQPotFEM::Generic2d::System::stiffness ( ) const

inline

Stiffness tensor of each integration point.

Convenience function: assembles output from elastic() and plastic().

Returns: Integration point tensor (copy). Shape: [nelem, nip, 2, 2, 2, 2].

Definition at line 1087 of file Generic2d.h.

◆ t()

double FrictionQPotFEM::Generic2d::System::t ( ) const

inline

Current time.

Definition at line 891 of file Generic2d.h.

◆ timeStep()

void FrictionQPotFEM::Generic2d::System::timeStep ( )

inline

Make a time-step: apply velocity-Verlet integration.

Forces are computed where needed using: updated_u(), updated_v(), and computeInternalExternalResidualForce().

Definition at line 1541 of file Generic2d.h.

◆ timeSteps()

long FrictionQPotFEM::Generic2d::System::timeSteps	(	size_t	n,
		size_t	nmargin = `0`
	)

inline

Make a number of time steps, see timeStep().

Parameters

n	Number of steps to make.
nmargin	Number of potentials to leave as margin. `nmargin > 0`: stop if the yield-index of any box is `nmargin` from the end and return a negative number. `nmargin == 0`: no bounds-check is performed (the last potential is assumed infinitely elastic to the right).

Returns

Number of steps: == n.
Negative number: if stopped because of a yield-index margin.

Definition at line 1601 of file Generic2d.h.

◆ timeStepsUntilEvent()

size_t FrictionQPotFEM::Generic2d::System::timeStepsUntilEvent	(	size_t	nmargin = `0`,
		double	tol = `1e-5`,
		size_t	niter_tol = `20`,
		size_t	max_iter = `1e7`
	)

inline

Perform a series of time-steps until the next plastic event, or equilibrium.

Parameters

nmargin	Number of potentials to have as margin initially.
tol	Relative force tolerance for equilibrium. See System::residual for definition.
niter_tol	Enforce the residual check for `niter_tol` consecutive increments.
max_iter	Maximum number of iterations. Throws `std::runtime_error` otherwise.

Returns

Number of steps.
0 if there was no plastic activity and the residual was reached.

Definition at line 1638 of file Generic2d.h.

◆ type()

virtual std::string FrictionQPotFEM::Generic2d::System::type ( ) const

inlinevirtual

Return the type of system.

Reimplemented in FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System, FrictionQPotFEM::UniformMultiLayerLeverDrive2d::System, FrictionQPotFEM::UniformSingleLayer2d::System, and FrictionQPotFEM::UniformSingleLayerThermal2d::System.

Definition at line 394 of file Generic2d.h.

◆ u()

const auto & FrictionQPotFEM::Generic2d::System::u ( ) const

inline

Nodal displacements.

Returns: Nodal displacements.

Definition at line 728 of file Generic2d.h.

◆ updated_u()

virtual void FrictionQPotFEM::Generic2d::System::updated_u ( )

inlinevirtual

Evaluate relevant forces when m_u is updated.

Under normal circumstances, this function is called automatically when needed.

Reimplemented in FrictionQPotFEM::UniformMultiLayerIndividualDrive2d::System, and FrictionQPotFEM::UniformMultiLayerLeverDrive2d::System.

Definition at line 626 of file Generic2d.h.

◆ updated_v()

void FrictionQPotFEM::Generic2d::System::updated_v ( )

inline

Evaluate relevant forces when m_v is updated.

Under normal circumstances, this function is called automatically when needed.

Definition at line 635 of file Generic2d.h.

◆ v()

const auto & FrictionQPotFEM::Generic2d::System::v ( ) const

inline

Nodal velocities.

Returns: Nodal velocities.

Definition at line 738 of file Generic2d.h.

◆ vector()

const GooseFEM::VectorPartitioned & FrictionQPotFEM::Generic2d::System::vector ( ) const

inline

GooseFEM vector definition.

Takes care of bookkeeping.

Returns: GooseFEM::VectorPartitioned (System::m_vector)

Definition at line 938 of file Generic2d.h.

Member Data Documentation

◆ m_a

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_a

protected

Nodal accelerations.

Definition at line 2114 of file Generic2d.h.

◆ m_a_n

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_a_n

protected

Nodal accelerations last time-step.

Definition at line 2116 of file Generic2d.h.

◆ m_alpha

double FrictionQPotFEM::Generic2d::System::m_alpha

protected

Background damping density (non-zero only if homogeneous).

Definition at line 2142 of file Generic2d.h.

◆ m_coor

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_coor

protected

Nodal coordinates, see coor().

Definition at line 2076 of file Generic2d.h.

◆ m_D

GooseFEM::MatrixDiagonal FrictionQPotFEM::Generic2d::System::m_D

protected

Damping matrix (diagonal).

Definition at line 2094 of file Generic2d.h.

◆ m_dt

double FrictionQPotFEM::Generic2d::System::m_dt

protected

Time-step.

Definition at line 2139 of file Generic2d.h.

◆ m_elas

GMatElastoPlasticQPot::Cartesian2d::Elastic<2> FrictionQPotFEM::Generic2d::System::m_elas

protected

Material for elastic el.

Definition at line 2095 of file Generic2d.h.

◆ m_elem_elas

array_type::tensor<size_t, 1> FrictionQPotFEM::Generic2d::System::m_elem_elas

protected

Elastic elements.

Definition at line 2085 of file Generic2d.h.

◆ m_elem_plas

array_type::tensor<size_t, 1> FrictionQPotFEM::Generic2d::System::m_elem_plas

protected

Plastic elements.

Definition at line 2086 of file Generic2d.h.

◆ m_Eps

array_type::tensor<double, 4> FrictionQPotFEM::Generic2d::System::m_Eps

protected

Quad-point tensor: strain.

Definition at line 2132 of file Generic2d.h.

◆ m_Epsdot_plas

array_type::tensor<double, 4> FrictionQPotFEM::Generic2d::System::m_Epsdot_plas

protected

Quad-point tensor: strain-rate for plastic el.

Definition at line 2134 of file Generic2d.h.

◆ m_eta

double FrictionQPotFEM::Generic2d::System::m_eta

protected

Damping at the interface.

Definition at line 2140 of file Generic2d.h.

◆ m_fdamp

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_fdamp

protected

Nodal force from damping.

Definition at line 2126 of file Generic2d.h.

◆ m_fe

array_type::tensor<double, 3> FrictionQPotFEM::Generic2d::System::m_fe

protected

Element vector (used for forces).

Definition at line 2118 of file Generic2d.h.

◆ m_fe_elas

array_type::tensor<double, 3> FrictionQPotFEM::Generic2d::System::m_fe_elas

protected

m_fe for elastic element only

Definition at line 2120 of file Generic2d.h.

◆ m_fe_plas

array_type::tensor<double, 3> FrictionQPotFEM::Generic2d::System::m_fe_plas

protected

m_fe for plastic element only

Definition at line 2122 of file Generic2d.h.

◆ m_felas

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_felas

protected

Nodal force from elasticity of elastic elements.

Definition at line 2124 of file Generic2d.h.

◆ m_fext

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_fext

protected

Nodal force: total external force (reaction force)

Definition at line 2130 of file Generic2d.h.

◆ m_fint

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_fint

protected

Nodal force: total internal force.

Definition at line 2129 of file Generic2d.h.

◆ m_fmaterial

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_fmaterial

protected

Nodal force, deriving from elasticity.

Definition at line 2123 of file Generic2d.h.

◆ m_fplas

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_fplas

protected

Nodal force from elasticity of plastic elements.

Definition at line 2125 of file Generic2d.h.

◆ m_fres

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_fres

protected

Nodal force: residual force.

Definition at line 2131 of file Generic2d.h.

◆ m_ftmp

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_ftmp

protected

Temporary for internal use.

Definition at line 2128 of file Generic2d.h.

◆ m_full_outdated

bool FrictionQPotFEM::Generic2d::System::m_full_outdated

protected

Keep track of the need to recompute fields on full geometry.

Definition at line 2145 of file Generic2d.h.

◆ m_fvisco

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_fvisco

protected

Nodal force from damping at the interface.

Definition at line 2127 of file Generic2d.h.

◆ m_inc

size_t FrictionQPotFEM::Generic2d::System::m_inc

protected

Current increment (current time = m_dt * m_inc).

Definition at line 2138 of file Generic2d.h.

◆ m_K_elas

GooseFEM::Matrix FrictionQPotFEM::Generic2d::System::m_K_elas

protected

Stiffness matrix for elastic elements only.

Definition at line 2135 of file Generic2d.h.

◆ m_M

GooseFEM::MatrixDiagonalPartitioned FrictionQPotFEM::Generic2d::System::m_M

protected

Mass matrix (diagonal).

Definition at line 2093 of file Generic2d.h.

◆ m_N

size_t FrictionQPotFEM::Generic2d::System::m_N

protected

Number of plastic elements, alias of m_nelem_plas.

Definition at line 2077 of file Generic2d.h.

◆ m_ndim

size_t FrictionQPotFEM::Generic2d::System::m_ndim

protected

Number of spatial dimensions.

Definition at line 2083 of file Generic2d.h.

◆ m_nelem

size_t FrictionQPotFEM::Generic2d::System::m_nelem

protected

Number of elements.

Definition at line 2078 of file Generic2d.h.

◆ m_nelem_elas

size_t FrictionQPotFEM::Generic2d::System::m_nelem_elas

protected

Number of elastic elements.

Definition at line 2079 of file Generic2d.h.

◆ m_nelem_plas

size_t FrictionQPotFEM::Generic2d::System::m_nelem_plas

protected

Number of plastic elements.

Definition at line 2080 of file Generic2d.h.

◆ m_nip

size_t FrictionQPotFEM::Generic2d::System::m_nip

protected

Number of integration points.

Definition at line 2084 of file Generic2d.h.

◆ m_nne

size_t FrictionQPotFEM::Generic2d::System::m_nne

protected

Number of nodes per element.

Definition at line 2081 of file Generic2d.h.

◆ m_nnode

size_t FrictionQPotFEM::Generic2d::System::m_nnode

protected

Number of nodes.

Definition at line 2082 of file Generic2d.h.

◆ m_pert_Epsd_plastic

array_type::tensor<double, 4> FrictionQPotFEM::Generic2d::System::m_pert_Epsd_plastic

protected

Strain deviator for m_pert_u.

Definition at line 2147 of file Generic2d.h.

◆ m_pert_u

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_pert_u

protected

See eventDriven_setDeltaU()

Definition at line 2146 of file Generic2d.h.

◆ m_plas

GMatElastoPlasticQPot::Cartesian2d::Cusp<2> FrictionQPotFEM::Generic2d::System::m_plas

protected

Material for plastic el.

Definition at line 2096 of file Generic2d.h.

◆ m_qs_inc_first

size_t FrictionQPotFEM::Generic2d::System::m_qs_inc_first = 0

protected

First increment with plastic activity during minimisation.

Definition at line 2136 of file Generic2d.h.

◆ m_qs_inc_last

size_t FrictionQPotFEM::Generic2d::System::m_qs_inc_last = 0

protected

Last increment with plastic activity during minimisation.

Definition at line 2137 of file Generic2d.h.

◆ m_quad

GooseFEM::Element::Quad4::Quadrature FrictionQPotFEM::Generic2d::System::m_quad

protected

Quadrature for all elements.

Definition at line 2087 of file Generic2d.h.

◆ m_quad_elas

GooseFEM::Element::Quad4::Quadrature FrictionQPotFEM::Generic2d::System::m_quad_elas

protected

m_quad for elastic elements only.

Definition at line 2088 of file Generic2d.h.

◆ m_quad_plas

GooseFEM::Element::Quad4::Quadrature FrictionQPotFEM::Generic2d::System::m_quad_plas

protected

m_quad for plastic elements only.

Definition at line 2089 of file Generic2d.h.

◆ m_rho

double FrictionQPotFEM::Generic2d::System::m_rho

protected

Mass density (non-zero only if homogeneous).

Definition at line 2141 of file Generic2d.h.

◆ m_set_D

bool FrictionQPotFEM::Generic2d::System::m_set_D

protected

Use m_D only if it is non-zero.

Definition at line 2143 of file Generic2d.h.

◆ m_set_visco

bool FrictionQPotFEM::Generic2d::System::m_set_visco

protected

Use m_eta only if it is non-zero.

Definition at line 2144 of file Generic2d.h.

◆ m_Sig

array_type::tensor<double, 4> FrictionQPotFEM::Generic2d::System::m_Sig

protected

Quad-point tensor: stress.

Definition at line 2133 of file Generic2d.h.

◆ m_u

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_u

protected

Nodal displacements.

Warning: To make sure that the right forces are computed at the right time, always call updated_u() after manually updating m_u (setU() automatically take care of this).

Definition at line 2104 of file Generic2d.h.

◆ m_ue

array_type::tensor<double, 3> FrictionQPotFEM::Generic2d::System::m_ue

protected

Element vector (used for displacements).

Definition at line 2117 of file Generic2d.h.

◆ m_ue_elas

array_type::tensor<double, 3> FrictionQPotFEM::Generic2d::System::m_ue_elas

protected

m_ue for elastic element only

Definition at line 2119 of file Generic2d.h.

◆ m_ue_plas

array_type::tensor<double, 3> FrictionQPotFEM::Generic2d::System::m_ue_plas

protected

m_ue for plastic element only

Definition at line 2121 of file Generic2d.h.

◆ m_v

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_v

protected

Nodal velocities.

Warning: To make sure that the right forces are computed at the right time, always call updated_v() after manually updating m_v (setV() automatically take care of this).

Definition at line 2112 of file Generic2d.h.

◆ m_v_n

array_type::tensor<double, 2> FrictionQPotFEM::Generic2d::System::m_v_n

protected

Nodal velocities last time-step.

Definition at line 2115 of file Generic2d.h.

◆ m_vector

GooseFEM::VectorPartitioned FrictionQPotFEM::Generic2d::System::m_vector

protected

Convert vectors between 'nodevec', 'elemvec', ....

Definition at line 2090 of file Generic2d.h.

◆ m_vector_elas

GooseFEM::VectorPartitioned FrictionQPotFEM::Generic2d::System::m_vector_elas

protected

m_vector for elastic elements only.

Definition at line 2091 of file Generic2d.h.

◆ m_vector_plas

GooseFEM::VectorPartitioned FrictionQPotFEM::Generic2d::System::m_vector_plas

protected

m_vector for plastic elements only.

Definition at line 2092 of file Generic2d.h.

The documentation for this class was generated from the following file:

FrictionQPotFEM/Generic2d.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~System()

◆ System()

Member Function Documentation

◆ a()

◆ affineSimpleShear()

◆ affineSimpleShearCentered()

◆ alpha()

◆ applyShearStress()

◆ computeEpsSig()

◆ computeForceMaterial()

◆ computeInternalExternalResidualForce()

◆ conn()

◆ coor()

◆ damping()

◆ dofs()

◆ dt()

◆ dV()

◆ elastic()

◆ elastic_elem()

◆ Eps()

◆ Epsddot()

◆ Epsdot()

◆ eta()

◆ eventDriven_deltaU()

◆ eventDriven_setDeltaU()

◆ eventDrivenStep()

◆ fdamp()

◆ fext()

◆ fint()

◆ flowSteps()

◆ fmaterial()

◆ G()

◆ inc()

◆ isHomogeneousElastic()

◆ K()

◆ mass()

◆ minimise()

◆ minimise_highfrequency()

◆ minimise_truncate() [1/2]

◆ minimise_truncate() [2/2]

◆ N()

◆ plastic()

◆ plastic_elem()

◆ plastic_Epsdot()

◆ quad()

◆ quasistaticActivityFirst()

◆ quasistaticActivityLast()

◆ quench()

◆ refresh()

◆ residual()

◆ rho()

◆ setA()

◆ setAlpha()

◆ setDampingMatrix()

◆ setDt()

◆ setEta()

◆ setFext()

◆ setInc()

◆ setMassMatrix()

◆ setRho()

◆ setT()

◆ setU()

◆ setV()

◆ Sig()

◆ stiffness()

◆ t()

◆ timeStep()

◆ timeSteps()

◆ timeStepsUntilEvent()

◆ type()

◆ u()

◆ updated_u()

◆ updated_v()

◆ v()

◆ vector()
