FrictionQPotFEM::UniformSingleLayerThermal2d::System Class Reference

Compared to UniformSingleLayer2d::System() this class adds thermal fluctuations. More...

#include <FrictionQPotFEM/UniformSingleLayerThermal2d.h>

Inheritance diagram for FrictionQPotFEM::UniformSingleLayerThermal2d::System:

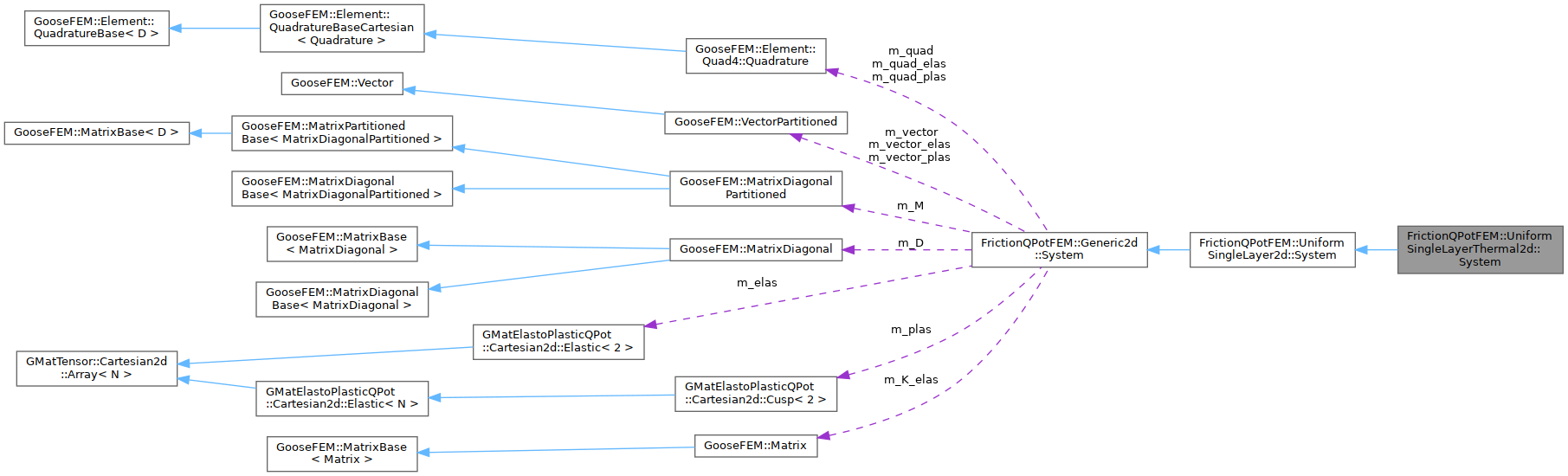

Collaboration diagram for FrictionQPotFEM::UniformSingleLayerThermal2d::System:

Public Member Functions

template<class C , class E , class L , class M , class Y >
 System (const C &coor, const E &conn, const E &dofs, const L &iip, const L &elastic_elem, const M &elastic_K, const M &elastic_G, const L &plastic_elem, const M &plastic_K, const M &plastic_G, const Y &plastic_epsy, double dt, double rho, double alpha, double eta, double temperature_dinc, size_t temperature_seed, double temperature)
 Define the geometry, including boundary conditions and element sets. More...

std::string type () const override
 Return the type of system. More...

const array_type::tensor< double, 2 > & fthermal () const
 The force vector that represents the effect of temperature (on the weak layer only). More...

double temperature () const
 Return the target temperature. More...

void setInc (size_t arg) override
 Set increment. More...

- Public Member Functions inherited from FrictionQPotFEM::UniformSingleLayer2d::System
template<class C , class E , class L , class M , class Y >
 System (const C &coor, const E &conn, const E &dofs, const L &iip, const L &elastic_elem, const M &elastic_K, const M &elastic_G, const L &plastic_elem, const M &plastic_K, const M &plastic_G, const Y &plastic_epsy, double dt, double rho, double alpha, double eta)
 Define the geometry, including boundary conditions and element sets. More...

std::string type () const override
 Return the type of system. More...

double typical_plastic_h () const
 Element height of all elements along the weak layer. More...

double typical_plastic_dV () const
 Integration point volume of all elements along the weak layer. More...

void initEventDrivenSimpleShear ()
 Initialise event driven protocol for affine simple shear. More...

double addSimpleShearToFixedStress (double target_stress, bool dry_run=false)
 Add simple shear until a target equivalent macroscopic stress has been reached. More...

double addElasticSimpleShearToFixedStress (double target_stress, bool dry_run=false)
 Add simple shear until a target equivalent macroscopic stress has been reached. More...

double triggerElementWithLocalSimpleShear (double deps_kick, size_t plastic_element, bool trigger_weakest=true, double amplify=1.0)
 Apply local strain to the right to a specific plastic element. More...

array_type::tensor< double, 2 > plastic_ElementYieldBarrierForSimpleShear (double deps_kick=0.0, size_t iquad=0)
 Read the distance to overcome the first cusp in the element. More...

- Public Member Functions inherited from FrictionQPotFEM::Generic2d::System
template<class C , class E , class L , class M , class Y >
 System (const C &coor, const E &conn, const E &dofs, const L &iip, const L &elastic_elem, const M &elastic_K, const M &elastic_G, const L &plastic_elem, const M &plastic_K, const M &plastic_G, const Y &plastic_epsy, double dt, double rho, double alpha, double eta)
 Define the geometry, including boundary conditions and element sets. More...

virtual size_t N () const
 Return the linear system size (in number of blocks). More...

virtual std::string type () const
 Return the type of system. More...

double rho () const
 Mass density. More...

void setRho (double rho)
 Overwrite the mass density to a homogeneous quantity. More...

template<class T >
void setMassMatrix (const T &val_elem)
 Overwrite mass matrix, based on certain density that is uniform per element. More...

void setEta (double eta)
 Overwrite the value of the damping at the interface. More...

double eta () const
 Get the damping at the interface. More...

void setAlpha (double alpha)
 Overwrite background damping density (proportional to the velocity), To use a non-homogeneous density use setDampingMatrix(). More...

double alpha () const
 Background damping density. More...

template<class T >
void setDampingMatrix (const T &val_elem)
 Overwrite damping matrix, based on certain density (taken uniform per element). More...

bool isHomogeneousElastic () const
 Check if elasticity is homogeneous. More...

double dt () const
 Get time step. More...

void setDt (double dt)
 Overwrite time step. More...

template<class T >
void setU (const T &u)
 Overwrite nodal displacements. More...

template<class T >
void setV (const T &v)
 Overwrite nodal velocities. More...

template<class T >
void setA (const T &a)
 Overwrite nodal accelerations. More...

virtual void updated_u ()
 Evaluate relevant forces when m_u is updated. More...

void updated_v ()
 Evaluate relevant forces when m_v is updated. More...

template<class T >
void setFext (const T &fext)
 Overwrite external force. More...

const auto & elastic_elem () const
 List of elastic elements. More...

const auto & plastic_elem () const
 List of plastic elements. More...

const auto & conn () const
 Connectivity. More...

const auto & coor () const
 Nodal coordinates. More...

const auto & dofs () const
 DOFs per node. More...

const auto & u () const
 Nodal displacements. More...

const auto & v () const
 Nodal velocities. More...

const auto & a () const
 Nodal accelerations. More...

auto & mass () const
 Mass matrix, see System::m_M. More...

auto & damping () const
 Damping matrix, see setAlpha() and setDampingMatrix(). More...

const auto & fext ()
 External force. More...

void applyShearStress (double sigxy)
 Modify the external force such that a shear stress is applied to the top boundary. More...

const auto & fint ()
 Internal force. More...

const auto & fmaterial () const
 Force deriving from elasticity. More...

const auto & fdamp () const
 Force deriving from damping. More...

double residual () const
 Norm of the relative residual force (the external force at the top/bottom boundaries is used for normalisation). More...

void quench ()
 Set nodal velocities and accelerations equal to zero. More...

double t () const
 Current time. More...

void setT (double arg)
 Overwrite time. More...

size_t inc () const
 The increment, see setInc(). More...

virtual void setInc (size_t arg)
 Set increment. More...

const auto & dV () const
 Integration point volume (of each integration point) More...

const GooseFEM::VectorPartitionedvector () const
 GooseFEM vector definition. More...

const GooseFEM::Element::Quad4::Quadraturequad () const
 GooseFEM quadrature definition. More...

GMatElastoPlasticQPot::Cartesian2d::Elastic< 2 > & elastic ()
 Elastic material mode, used for all elastic elements. More...

GMatElastoPlasticQPot::Cartesian2d::Cusp< 2 > & plastic ()
 Elastic material mode, used for all elastic elements. More...

array_type::tensor< double, 2 > K () const
 Bulk modulus per integration point. More...

array_type::tensor< double, 2 > G () const
 Shear modulus per integration point. More...

const array_type::tensor< double, 4 > & Sig ()
 Stress tensor of each integration point. More...

const array_type::tensor< double, 4 > & Eps ()
 Strain tensor of each integration point. More...

array_type::tensor< double, 4 > Epsdot () const
 Strain-rate tensor (the symmetric gradient of the nodal velocities) of each integration point. More...

array_type::tensor< double, 4 > Epsddot () const
 Symmetric gradient of the nodal accelerations of each integration point. More...

GooseFEM::MatrixPartitioned stiffness () const
 Stiffness tensor of each integration point. More...

const array_type::tensor< double, 4 > & plastic_Epsdot ()
 Strain-rate tensor of integration points of plastic elements only, see System::plastic. More...

void refresh ()
 Recompute all forces. More...

template<class T >
double eventDriven_setDeltaU (const T &delta_u, bool autoscale=true)
 Set purely elastic and linear response to specific boundary conditions. More...

const auto & eventDriven_deltaU () const
 Get displacement perturbation used for event driven code, see eventDriven_setDeltaU(). More...

virtual double eventDrivenStep (double deps, bool kick, int direction=1, bool yield_element=false, bool iterative=false)
 Add event driven step for the boundary conditions that correspond to the displacement perturbation set in eventDriven_setDeltaU(). More...

void timeStep ()
 Make a time-step: apply velocity-Verlet integration. More...

long timeSteps (size_t n, size_t nmargin=0)
 Make a number of time steps, see timeStep(). More...

size_t timeStepsUntilEvent (size_t nmargin=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
 Perform a series of time-steps until the next plastic event, or equilibrium. More...

std::tuple< array_type::tensor< double, 1 >, array_type::tensor< double, 2 >, array_type::tensor< double, 2 > > minimise_highfrequency (const array_type::tensor< size_t, 1 > &nodes, const array_type::tensor< size_t, 1 > &top, size_t t_step=1, size_t nmargin=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
 Minimise energy while doing a high-frequency measurement of: More...

template<class T >
long flowSteps (size_t n, const T &v, size_t nmargin=0)
 Make a number of steps with the following protocol. More...

long minimise (size_t nmargin=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7, bool time_activity=false, bool max_iter_is_error=true)
 Minimise energy: run System::timeStep until a mechanical equilibrium has been reached. More...

size_t quasistaticActivityFirst () const
 Increment with the first plastic event. More...

size_t quasistaticActivityLast () const
 Increment with the last plastic event. More...

template<class T >
size_t minimise_truncate (const T &idx_n, size_t A_truncate=0, size_t S_truncate=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
 Like Generic2d::minimise(), but stops when a certain number of blocks has yielded at least once. More...

size_t minimise_truncate (size_t A_truncate=0, size_t S_truncate=0, double tol=1e-5, size_t niter_tol=20, size_t max_iter=1e7)
 Like Generic2d::minimise(), but stops when a certain number of blocks has yielded at least once. More...

array_type::tensor< double, 2 > affineSimpleShear (double delta_gamma) const
 Get the displacement field that corresponds to an affine simple shear of a certain strain. More...

array_type::tensor< double, 2 > affineSimpleShearCentered (double delta_gamma) const
 Get the displacement field that corresponds to an affine simple shear of a certain strain. More...


Protected Member Functions

void updateCache (int64_t index)
 Update cache of thermal forces on the weak layer. More...

void computeThermalForce (bool force=false)
 Update the thermal force vector. More...

void computeInternalExternalResidualForce () override
 Compute: More...

- Protected Member Functions inherited from FrictionQPotFEM::Generic2d::System
void computeEpsSig ()
 Compute m_Sig and m_Eps using m_u. More...

void computeForceMaterial ()
 Update m_fmaterial based on the current displacement field m_u. More...

virtual void computeInternalExternalResidualForce ()
 Compute: More...


Protected Attributes

size_t m_computed
 Increment at which the thermal stress tensor was generated. More...

size_t m_dinc
 Duration to keep the same random thermal stress tensor. More...

double m_T
 Definition of temperature (units of equivalent stress). More...

double m_std
 Standard deviation for signed equivalent thermal stress. More...

array_type::tensor< double, 2 > m_fthermal
 Nodal force from temperature. More...

array_type::tensor< double, 4 > m_cache
 Cache [ncache, m_elem_plas.size(), 3, 2]. More...

int64_t m_cache_start
 Start index of the cache. More...

int64_t m_ncache
 Number of cached items. More...

prrng::pcg32 m_gen
 Random generator for thermal forces. More...

- Protected Attributes inherited from FrictionQPotFEM::Generic2d::System
array_type::tensor< double, 2 > m_coor
 Nodal coordinates, see coor(). More...

size_t m_N
 Number of plastic elements, alias of m_nelem_plas. More...

size_t m_nelem
 Number of elements. More...

size_t m_nelem_elas
 Number of elastic elements. More...

size_t m_nelem_plas
 Number of plastic elements. More...

size_t m_nne
 Number of nodes per element. More...

size_t m_nnode
 Number of nodes. More...

size_t m_ndim
 Number of spatial dimensions. More...

size_t m_nip
 Number of integration points. More...

array_type::tensor< size_t, 1 > m_elem_elas
 Elastic elements. More...

array_type::tensor< size_t, 1 > m_elem_plas
 Plastic elements. More...

GooseFEM::Element::Quad4::Quadrature m_quad
 Quadrature for all elements. More...

GooseFEM::Element::Quad4::Quadrature m_quad_elas
 m_quad for elastic elements only. More...

GooseFEM::Element::Quad4::Quadrature m_quad_plas
 m_quad for plastic elements only. More...

GooseFEM::VectorPartitioned m_vector
 Convert vectors between 'nodevec', 'elemvec', .... More...

GooseFEM::VectorPartitioned m_vector_elas
 m_vector for elastic elements only. More...

GooseFEM::VectorPartitioned m_vector_plas
 m_vector for plastic elements only. More...

GooseFEM::MatrixDiagonalPartitioned m_M
 Mass matrix (diagonal). More...

GooseFEM::MatrixDiagonal m_D
 Damping matrix (diagonal). More...

GMatElastoPlasticQPot::Cartesian2d::Elastic< 2 > m_elas
 Material for elastic el. More...

GMatElastoPlasticQPot::Cartesian2d::Cusp< 2 > m_plas
 Material for plastic el. More...

array_type::tensor< double, 2 > m_u
 Nodal displacements. More...

array_type::tensor< double, 2 > m_v
 Nodal velocities. More...

array_type::tensor< double, 2 > m_a
 Nodal accelerations. More...

array_type::tensor< double, 2 > m_v_n
 Nodal velocities last time-step. More...

array_type::tensor< double, 2 > m_a_n
 Nodal accelerations last time-step. More...

array_type::tensor< double, 3 > m_ue
 Element vector (used for displacements). More...

array_type::tensor< double, 3 > m_fe
 Element vector (used for forces). More...

array_type::tensor< double, 3 > m_ue_elas
 m_ue for elastic element only More...

array_type::tensor< double, 3 > m_fe_elas
 m_fe for elastic element only More...

array_type::tensor< double, 3 > m_ue_plas
 m_ue for plastic element only More...

array_type::tensor< double, 3 > m_fe_plas
 m_fe for plastic element only More...

array_type::tensor< double, 2 > m_fmaterial
 Nodal force, deriving from elasticity. More...

array_type::tensor< double, 2 > m_felas
 Nodal force from elasticity of elastic elements. More...

array_type::tensor< double, 2 > m_fplas
 Nodal force from elasticity of plastic elements. More...

array_type::tensor< double, 2 > m_fdamp
 Nodal force from damping. More...

array_type::tensor< double, 2 > m_fvisco
 Nodal force from damping at the interface. More...

array_type::tensor< double, 2 > m_ftmp
 Temporary for internal use. More...

array_type::tensor< double, 2 > m_fint
 Nodal force: total internal force. More...

array_type::tensor< double, 2 > m_fext
 Nodal force: total external force (reaction force) More...

array_type::tensor< double, 2 > m_fres
 Nodal force: residual force. More...

array_type::tensor< double, 4 > m_Eps
 Quad-point tensor: strain. More...

array_type::tensor< double, 4 > m_Sig
 Quad-point tensor: stress. More...

array_type::tensor< double, 4 > m_Epsdot_plas
 Quad-point tensor: strain-rate for plastic el. More...

GooseFEM::Matrix m_K_elas
 Stiffness matrix for elastic elements only. More...

size_t m_qs_inc_first = 0
 First increment with plastic activity during minimisation. More...

size_t m_qs_inc_last = 0
 Last increment with plastic activity during minimisation. More...

size_t m_inc
 Current increment (current time = m_dt * m_inc). More...

double m_dt
 Time-step. More...

double m_eta
 Damping at the interface. More...

double m_rho
 Mass density (non-zero only if homogeneous). More...

double m_alpha
 Background damping density (non-zero only if homogeneous). More...

bool m_set_D
 Use m_D only if it is non-zero. More...

bool m_set_visco
 Use m_eta only if it is non-zero. More...

bool m_full_outdated
 Keep track of the need to recompute fields on full geometry. More...

array_type::tensor< double, 2 > m_pert_u
 See eventDriven_setDeltaU() More...

array_type::tensor< double, 4 > m_pert_Epsd_plastic
 Strain deviator for m_pert_u. More...


Detailed Description

Compared to UniformSingleLayer2d::System() this class adds thermal fluctuations.

The fluctuations are implemented as a dipolar force on each element edge. Both its components are drawn from a normal distribution with zero mean and 'temperature' standard deviation. The temperature specification is thereby in units of the equivalent stress, see GMatElastoPlasticQPot::Cartesian2d::Sigd().

Definition at line 52 of file UniformSingleLayerThermal2d.h.

Constructor & Destructor Documentation

◆ ~System()

virtual FrictionQPotFEM::UniformSingleLayerThermal2d::System::~System ( )
inlinevirtual

Reimplemented from FrictionQPotFEM::UniformSingleLayer2d::System.

Definition at line 58 of file UniformSingleLayerThermal2d.h.

◆ System()

template<class C , class E , class L , class M , class Y >
FrictionQPotFEM::UniformSingleLayerThermal2d::System::System ( const C &  coor,
const E &  conn,
const E &  dofs,
const L &  iip,
const L &  elastic_elem,
const M &  elastic_K,
const M &  elastic_G,
const L &  plastic_elem,
const M &  plastic_K,
const M &  plastic_G,
const Y &  plastic_epsy,
double  dt,
double  rho,
double  alpha,
double  eta,
double  temperature_dinc,
size_t  temperature_seed,
double  temperature
)
inline

Define the geometry, including boundary conditions and element sets.

Template Parameters
CType of nodal coordinates, e.g. array_type::tensor<double, 2>
EType of connectivity and DOFs, e.g. array_type::tensor<size_t, 2>
LType of node/element lists, e.g. array_type::tensor<size_t, 1>
Parameters
coorNodal coordinates.
connConnectivity.
dofsDOFs per node.
iipDOFs whose displacement is fixed.
elastic_elemElastic elements.
elastic_KBulk modulus per quad. point of each elastic element, see setElastic().
elastic_GShear modulus per quad. point of each elastic element, see setElastic().
plastic_elemPlastic elements.
plastic_KBulk modulus per quad. point of each plastic element, see Plastic().
plastic_GShear modulus per quad. point of each plastic element, see Plastic().
plastic_epsyYield strain per quad. point of each plastic element, see Plastic().
dtTime step, set setDt().
rhoMass density, see setMassMatrix().
alphaBackground damping density, see setDampingMatrix().
etaDamping at the interface (homogeneous), see setEta().
temperature_dincDuration to keep the same random thermal stress tensor.
temperature_seedSeed random generator thermal stress.
temperature'Temperature': in units of the the equivalent stress.

Definition at line 87 of file UniformSingleLayerThermal2d.h.

Member Function Documentation

◆ computeInternalExternalResidualForce()

void FrictionQPotFEM::UniformSingleLayerThermal2d::System::computeInternalExternalResidualForce ( )
inlineoverrideprotectedvirtual

Compute:

  • m_fint = m_fmaterial + m_fdamp + m_fthermal
  • m_fext[iip] = m_fint[iip]
  • m_fres = m_fext - m_fint

Internal rule: all relevant forces are expected to be updated before this function is called.

Reimplemented from FrictionQPotFEM::Generic2d::System.

Definition at line 266 of file UniformSingleLayerThermal2d.h.

◆ computeThermalForce()

void FrictionQPotFEM::UniformSingleLayerThermal2d::System::computeThermalForce ( bool  force = false)
inlineprotected

Update the thermal force vector.

Parameters
forceIf false updating is skipped if already computed for the current increment.

Definition at line 215 of file UniformSingleLayerThermal2d.h.

◆ fthermal()

const array_type::tensor< double, 2 > & FrictionQPotFEM::UniformSingleLayerThermal2d::System::fthermal ( ) const
inline

The force vector that represents the effect of temperature (on the weak layer only).

Returns
nodevec

Definition at line 170 of file UniformSingleLayerThermal2d.h.

◆ setInc()

void FrictionQPotFEM::UniformSingleLayerThermal2d::System::setInc ( size_t  arg)
inlineoverridevirtual

Set increment.

Parameters
argsize_t.

Reimplemented from FrictionQPotFEM::Generic2d::System.

Definition at line 204 of file UniformSingleLayerThermal2d.h.

◆ temperature()

double FrictionQPotFEM::UniformSingleLayerThermal2d::System::temperature ( ) const
inline

Return the target temperature.

Returns
double

Definition at line 179 of file UniformSingleLayerThermal2d.h.

◆ type()

std::string FrictionQPotFEM::UniformSingleLayerThermal2d::System::type ( ) const
inlineoverridevirtual

Return the type of system.

Reimplemented from FrictionQPotFEM::UniformSingleLayer2d::System.

Definition at line 161 of file UniformSingleLayerThermal2d.h.

◆ updateCache()

void FrictionQPotFEM::UniformSingleLayerThermal2d::System::updateCache ( int64_t  index)
inlineprotected

Update cache of thermal forces on the weak layer.

Definition at line 188 of file UniformSingleLayerThermal2d.h.

Member Data Documentation

◆ m_cache

array_type::tensor<double, 4> FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_cache
protected

Cache [ncache, m_elem_plas.size(), 3, 2].

Definition at line 155 of file UniformSingleLayerThermal2d.h.

◆ m_cache_start

int64_t FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_cache_start
protected

Start index of the cache.

Definition at line 156 of file UniformSingleLayerThermal2d.h.

◆ m_computed

size_t FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_computed
protected

Increment at which the thermal stress tensor was generated.

Definition at line 150 of file UniformSingleLayerThermal2d.h.

◆ m_dinc

size_t FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_dinc
protected

Duration to keep the same random thermal stress tensor.

Definition at line 151 of file UniformSingleLayerThermal2d.h.

◆ m_fthermal

array_type::tensor<double, 2> FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_fthermal
protected

Nodal force from temperature.

Definition at line 154 of file UniformSingleLayerThermal2d.h.

◆ m_gen

prrng::pcg32 FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_gen
protected

Random generator for thermal forces.

Definition at line 158 of file UniformSingleLayerThermal2d.h.

◆ m_ncache

int64_t FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_ncache
protected

Number of cached items.

Definition at line 157 of file UniformSingleLayerThermal2d.h.

◆ m_std

double FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_std
protected

Standard deviation for signed equivalent thermal stress.

Definition at line 153 of file UniformSingleLayerThermal2d.h.

◆ m_T

double FrictionQPotFEM::UniformSingleLayerThermal2d::System::m_T
protected

Definition of temperature (units of equivalent stress).

Definition at line 152 of file UniformSingleLayerThermal2d.h.


The documentation for this class was generated from the following file:
